Short Description:

Type:Micro Motor

Commutation :Brush

Feature:Vibration

Rated Voltage: 3.0(V) DC

Rated speed: 12000±2500 rpm

Rated current:80 mA Max

Starting voltage :2.3(V) DC

Operating voltage:2.5~4.0V DC

Life: 3.0V, 2S ON, 1S OFF, 50,000 cycles




  • FOB Price: US $0/ Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 3000000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Brand Name: Leader
  • Construction: Permanent Magnet
  • Protect Feature: Totally Enclosed
  • Technical Datas: Can be customized
  • Color: Silvery White
  • Product Detail

    Product Tags

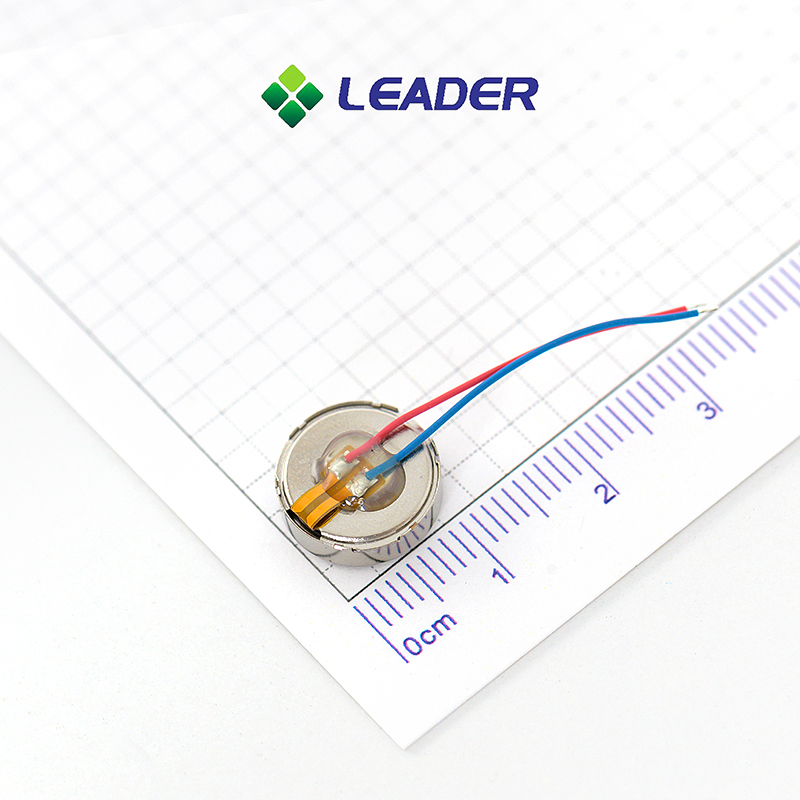

    Coin vibration motors also known as shaftless or pancake vibrator motors, generally in Ø7mm – Ø12mm diameters. Due to their small size and enclosed vibration mechanism, vibrating coin motor are a popular for many applications.

    We can design a custom FPC for your application. If your application requires it, foam pads of varying thicknesses and/or double stick tape tape may also be added.

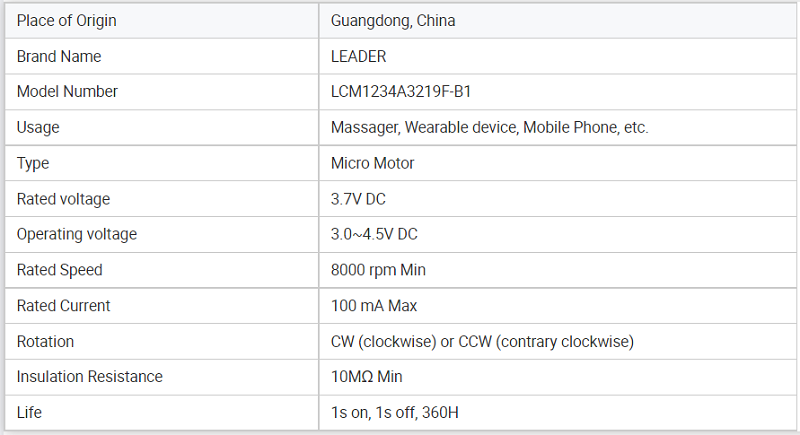

    Product Technical Parameters of Ultrathin Vibrating motor

    http://www.leader-w.com/products/coin-type-motor/

    coin vibration motors

    http://www.leader-w.com/products/coin-type-motor/

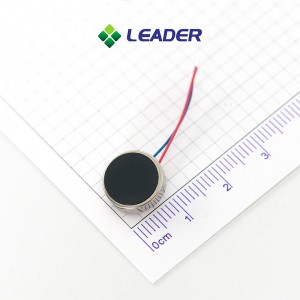

    large coin vibration motor

    Place of Origin  Guangdong, China (Mainland)
    Model Number  LCM1234
    Usage Mobile phone, Watch and Band,Massagers,Medical apparatus and instruments
    Certification  ISO9001,ISO14001,OHSAS18001
    Type Micro Motor
    Commutation  Brush
    Feature Vibration
    Rated Voltage  3.0(V) DC
    Rated speed  12000±2500 rpm
    Rated current 80 mA Max
    Starting voltage  2.3(V) DC
    Operating voltage 2.5~4.0V DC
    Life  3.0V, 2S ON, 1S OFF,  50,000 cycles

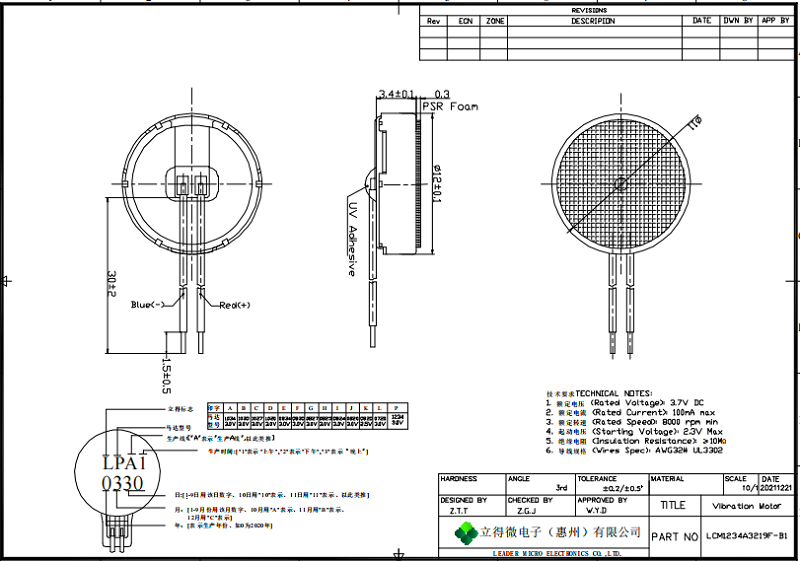

    1234



    The main features and the structure of coin flat vibrating vibration motor  :

    Main Features

    1) Simple structure in linear type ,easy in installation and maintation.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

    3) High pressure double crank to control the die opening and closing.

    4) Running in a high automatization and intellectualization,no pollution

    5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

    Coin-Type-Vibration-Motor-for-Mobile-Phone

    The application of Mini Vibrating Magnet motor :

    Coin vibrating motor is widely used for Cell Phone,Beauty product, Dental equipment, Pager, Personal care,Massager, Massage Rod, Vibrator.etc.

    1530254933(1)
