Short Description:
3V Mini Dc Motor F-PCB 0820、0825、0827、0830、0834
Product Detail
Product Tags

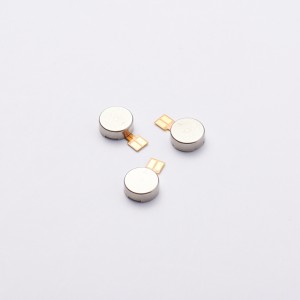

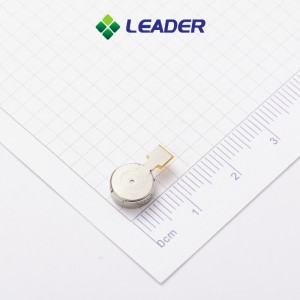

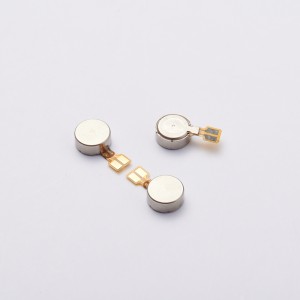

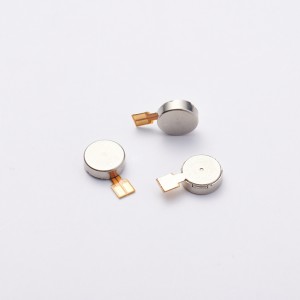

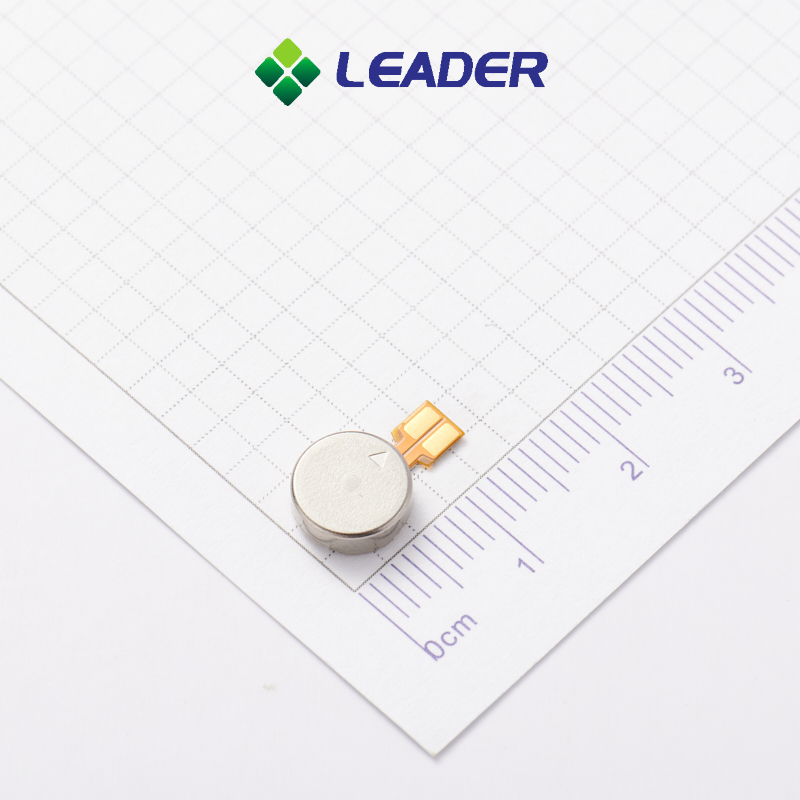

Brief Introduction of Coin Motor
Leader Micro Electronics currently produces coin vibration motors, also known as pancake vibrator motors with diameters of Ø7mm-Ø12mm.
Coin motors are convenient to use and can be affixed in place with a strong permanent self-adhesive mounting system.
For coin motor, we offer both leaded and spring & pad mountable versions. The wire length can be modified and the connector can be added as required.

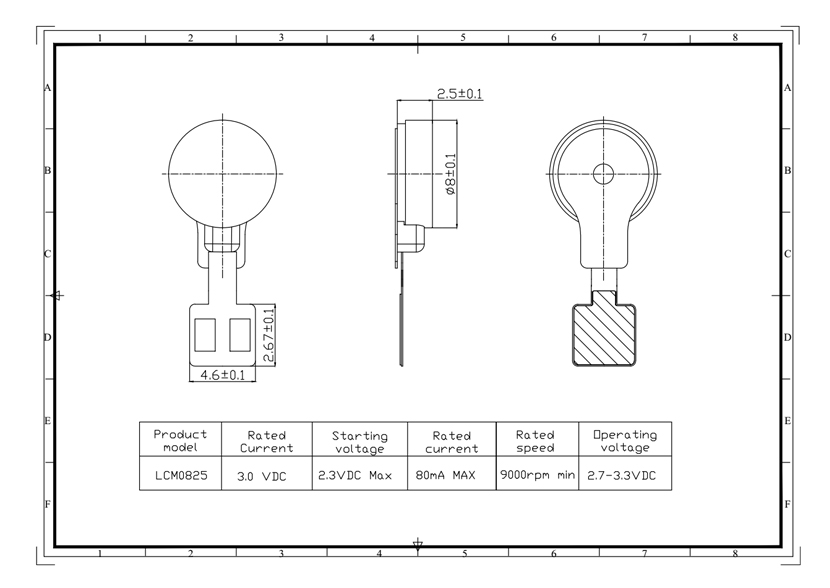

| Place of Origin | Guangdong, China (Mainland) | ||

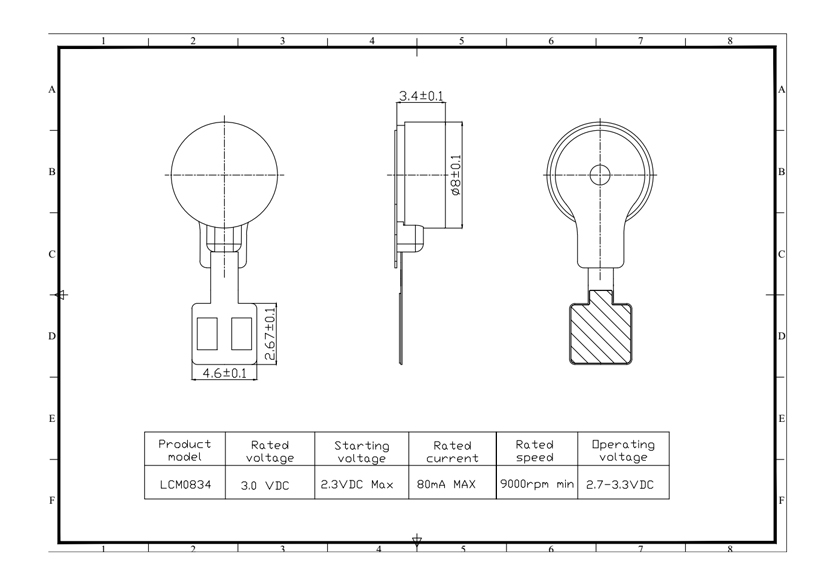

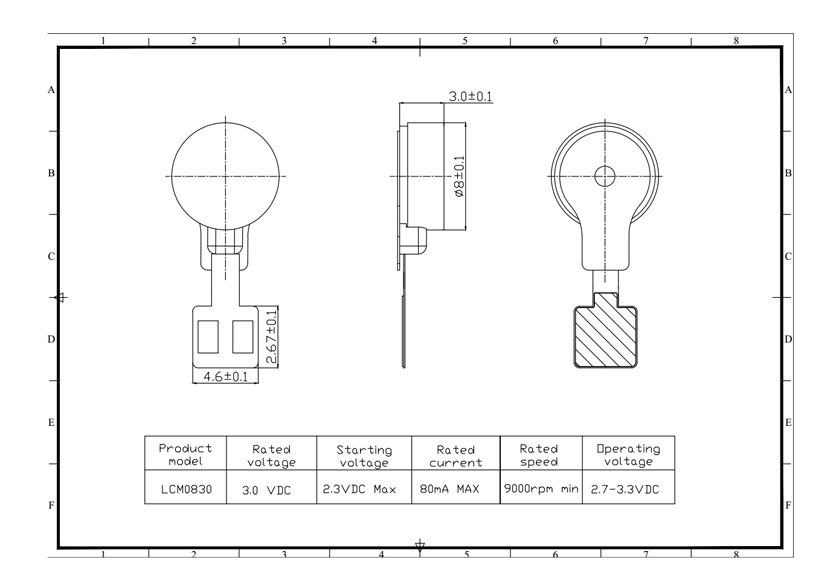

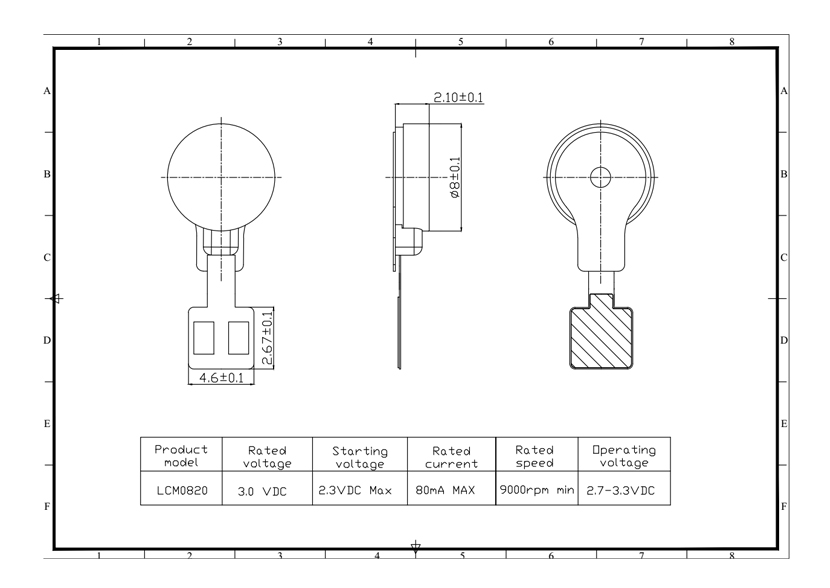

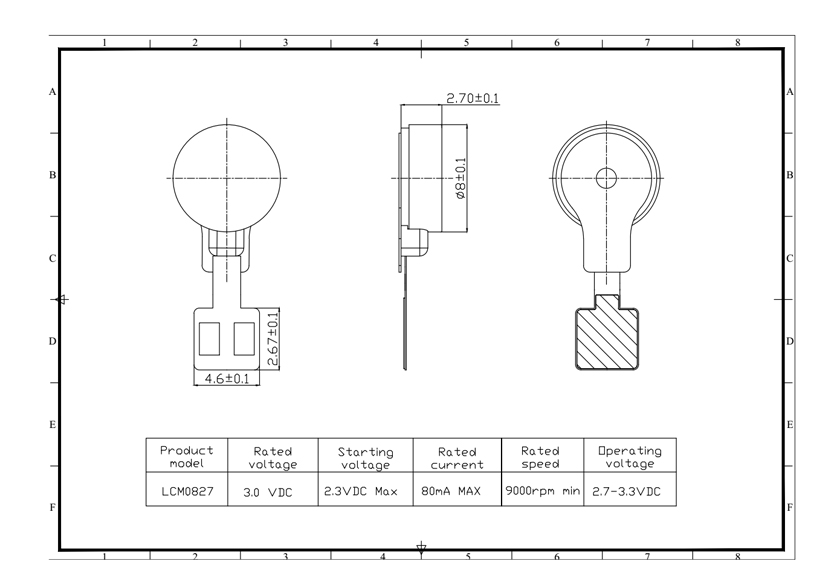

| Model Number | F-PCB 0820、0825、0827、0830、0834 | ||
| Usage | Mobile phone, Watch and Band,Massagers,Medical apparatus and instruments | ||
| Certification | ISO9001，ISO14001，ISO45001 | ||
| Type | Micro Motor | ||
| Commutation | Brush | ||
| Feature | Vibration | ||
| Rated Voltage | 3.0(V) DC | ||
| Rated speed | 9000rpm Min | ||
| Rated current | 80 mA Max | ||
| Starting voltage | 2.3(V) DC | ||
| Vibration test | 0.4±0.2G、0.4±0.2G、0.6±0.2G、0.8±0.2G、 0.8±0.2G | ||
| Operating voltage | 2.7～3.3(V )DC | ||
| Life | 3.0V, 1S ON, 2S OFF, 100,000 cycles | ||
Main Features of Micro Coin Motor
- Small Size, Easy Mounting In Haptic Device.
- Low Noise Level When Vibrating Feedback.
- Rated At 3 VDC, Offer A Low-Power Solution For Vibrating.
- Rotates Both Cw And CCW Easily Used And Installation.
COMPANY PROFILE
Leader is a manufacturer in Micro Coin Motor.
Established in 2007, Leader Microelectronics (Huizhou) Co., Ltd. is an international enterprise integrating R & D, production, and sales.
In 2015, we established a branch company in Anhui province, called Jinzhai Leader Micro Electronics Co., Ltd to meet the growth of the order.
We mainly produce coin motor, linear motor, brushless motor, coreless motor, SMD motor, Air-modeling motor, deceleration motor and so on, as well as the micromotor in the multi-field application, which are widely used in mobile phone, wearable device, massagers, e-cigarette and so on.
We have 4 automatic production lines of the coin motor (Production Capacity 5KK/month), 2 lines of brushless motor and linear motor(2KK/month), and 1 line of bar-type motor.
Quality system and R & D strength.
We have passed ISO9001:2015 international quality management system, ISO14001:2015 environment management system , and ISO45001:2018 occupational health and safety management system, to ensure the superiority of product quality and the stability of product performance.
We also have the most advanced production and testing equipment at present and technically at the leading level in the domestic and foreign industries.
There are nearly 20 staffs in our R & D team, some of whom have more than 10 years experience in micro motor technology and we have our processing workshop to produce JIG by ourselves to meet the newly developed products requested by our customers.
Our main customers include: PMI, RELX, FLEX, Venture, PEGATRON，BBK and so on.
CERTIFICATIONS
PRODUCT TEST EQUIPMENT
PACKING & DELIVERY
1. 100mini dc drive motors in each PS tray.
2. Every 20 capsules as a group, put a plastic cover on the group and wrap it in tape.
3. Put the wrapped group into a inbox.
4. Every 8 inboxes are put into an outer case by the ways standard as the drawing.
5. Quantity and batch number are written on the surface of the outer case.
OUR ADVANTAGES
1.Continuously improve production automacity 35 of 47 existing process has been realized automation, achieving an automation rate of 75%.
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. What is your sample policy?
A: We can provide free sample, but the customers have to pay courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q5: What kind of motors you can provide?
A: Our main products are coin motor, linear motor, bldc motor which are applied in mobile phone, wearable devices, massagers and so on.
Q6: Is there a MOQ for your motors?
A: Yes, our MOQ is 100PCS.
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation to see if we can arrange or notQ8: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.Q9: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.Q10: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
Brief Introduction of Coin Motor:
Leader Micro Electronics currently produces coin vibration motors, also known as pancake vibrator motors with diameters of Ø7mm-Ø12mm.
Coin motors are convenient to use and can be affixed in place with a strong permanent self-adhesive mounting system.
For coin motor, we offer both leaded and spring & pad mountable versions. The wire length can be modified and the connector can be added as required.
Main Features of Micro Coin Motor:
- Small Size, Easy Mounting In Haptic Device.
- Low Noise Level When Vibrating Feedback.
- Rated At 3 VDC, Offer A Low-Power Solution For Vibrating.
- Rotates Both Cw And CCW Easily Used And Installation.
COMPANY PROFILE
Leader is a manufacturer in Micro Coin Motor.
Established in 2007, Leader Microelectronics (Huizhou) Co., Ltd. is an international enterprise integrating R & D, production, and sales.
In 2015, we established a branch company in Anhui province, called Jinzhai Leader Micro Electronics Co., Ltd to meet the growth of the order.
We mainly produce coin motor, linear motor, brushless motor, coreless motor, SMD motor, Air-modeling motor, deceleration motor and so on, as well as the micromotor in the multi-field application, which are widely used in mobile phone, wearable device, massagers, e-cigarette and so on.
We have 4 automatic production lines of the coin motor (Production Capacity 5KK/month), 2 lines of brushless motor and linear motor(2KK/month), and 1 line of bar-type motor.
Quality system and R & D strength.
We have passed ISO9001:2015 international quality management system, ISO14001:2015 environment management system , and OHSAS18001:2011 occupational health and safety management system, to ensure the superiority of product quality and the stability of product performance.
We also have the most advanced production and testing equipment at present and technically at the leading level in the domestic and foreign industries.
There are 12 staffs in our R & D team, some of whom have more than 10 years experience in micro motor technology and we have our processing workshop to produce JIG by ourselves to meet the newly developed products requested by our customers.
CERTIFICATIONS
PRODUCT TEST EQUIPMENT
PACKING & DELIVERY
1. 100mini dc drive motors in each PS tray.
2. Every 20 capsules as a group, put a plastic cover on the group and wrap it in tape.
3. Put the wrapped group into a inbox.
4. Every 8 inboxes are put into an outer case by the ways standard as the drawing.
5. Quantity and batch number are written on the surface of the outer case.
OUR ADVANTAGES
1.Continuously improve production automacity 35 of 47 existing process has been realized automation, achieving an automation rate of 75%.
OUR CUSTOMERS
FAQ
Q1. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q2. What is your sample policy?
A: We can provide free sample, but the customers have to pay courier cost.
Q3. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q4: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
Q5: What kind of motors you can provide?
A: Our main products are coin motor, linear motor, bldc motor which are applied in mobile phone, wearable devices, massagers and so on.
Q6: Is there a MOQ for your motors?
A: Yes, our MOQ is 100PCS.
A: Yes. Please kindly share the detailed requirements like performance, size, annual quantity, target price etc. Then we’ll make our evaluation to see if we can arrange or not
Q8: Which shipping way is available?
A: DHL, UPS, FedEx, TNT, EMS, China Post,Sea are available.The other shipping ways are also available, please contact us if you need ship by the other shipping way.
Q9: How long is the deliver[Producing] and shipping?
A: Deliver time depends on the quantity you order. usually it takes 15-25 working days.
Q10: How to confirm the payment?
A: We accept payment by T/T, PayPal, the other payment ways also could be accepted,Please contact us before you pay by the other payment ways. Also 30-50% deposit is available, the balance money should be paid before shipping.
