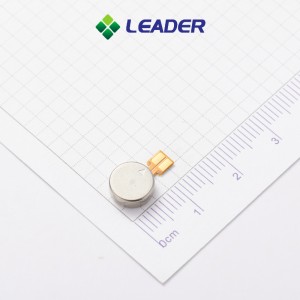

3V 10mm Flat Coin Type Vibration Motor vibrating mini electric motor 1030

3V 10mm Flat Coin Type Vibration Motor vibrating mini electric motor   1030

Rövid leírás:

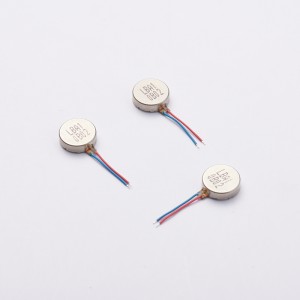

Dc vibration motor of coin vibration motor is available with either an FPC or wire leads. Versions with foam pads and without adhesive are also available. It was designed for devices requiring vibration alerts or haptic feedback. Because it produces a relatively low vibrational force, this motor is best suited for use in light weight devices placed directly against the user’s skin. It utilizes a flexible printed circuit (FPC) which may be hot-bar soldered directly to the PCB. It may be driven...


  • FOB: US $ 0 / db
  • Minimál megrendelés Mennyiség: 100 db / db
  • Supply Ability: 3000000 Piece/Pieces per Month
  • Port: Shenzhen
  • Fizetési feltételek: L / C, D / A, D / P, T / T
  • Márkanév: Leader
  • Szerkezet: állandó mágnes
  • Protect Feature: teljesen zárt
  • Technikai adatok: Lehet, hogy testreszabott
  • Termék leírás

    Termék címkék

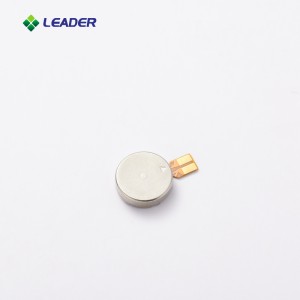

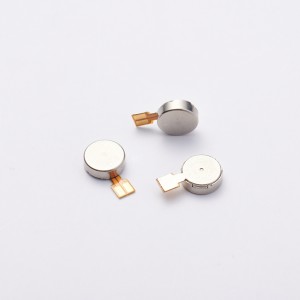

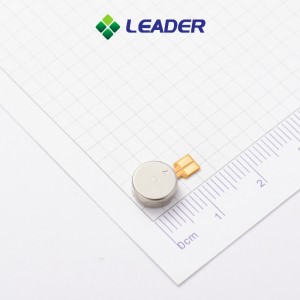

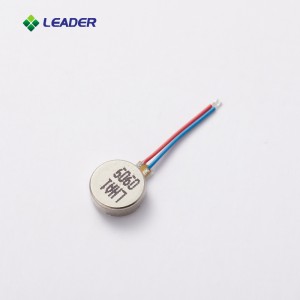

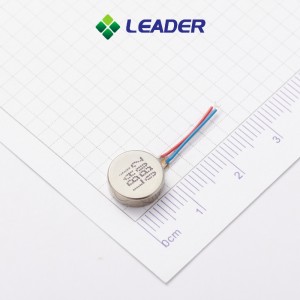

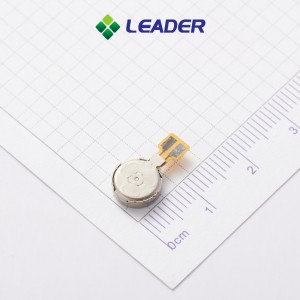

    Dc vibration motor of coin vibration motor is available with either an FPC or wire leads. Versions with foam pads and without adhesive are also available. It was designed for devices requiring vibration alerts or haptic feedback. Because it produces a relatively low vibrational force, this motor is best suited for use in light weight devices placed directly against the user’s skin. It utilizes a flexible printed circuit (FPC) which may be hot-bar soldered directly to the PCB. It may be driven by either DC voltage or a PWM signal. A driver IC is not required but may be used to produce various haptic effects. Custom FPC’s, foam pads, or PSA are available for mass production orders.

    _SGS5161



    T7ezgy_uJjSZTE763YkFXae.png_

    Product Technical Parameters of Mini Vibrating Watch  motor

    ncake-vibrating-motors

    Származási hely  Guangdong, Kína (szárazföld)
    Típusszám  1030
    Használat Mobiltelefon, Watch és a Band, masszírozó, orvosi készülékek és műszerek
    Tanúsítvány  ISO9001, ISO14001, OHSAS18001
    típus Micro Motor
    átváltoztatás  Kefe
    Funkció Rezgés
    Feszültség  3,0 (V) DC
    névleges fordulatszám 10000rpm Min
    névleges áram 80 mA Max
    Kezdve feszültség  2.3 (V) DC
    Rezgésvizsgálat  0,8 ± 0,2 g
    Üzemi feszültség  2.7 ~ 3,3 (V) DC
    Élet  3.0V, 1-ek, 2S KI, 100,000 ciklus

    1030- pian

    The main features and the structure of  Mini Vibrating Toys  motor :

    1) Simple structure in linear type ,easy in installation and maintation.

    2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.

    3) High pressure double crank to control the die opening and closing.

    4) Running in a high automatization and intellectualization,no pollution

    5) Apply a linker to connect with the air conveyor ,which can directly inline with filling machine.

    Coin-Type-Vibration-Motor-for-Mobile-Phone

    The application of  Mini Vibrating Electronic cigarette  motor

    Mobile phone,cell phone, health dental,Vibrator,Personal Care, Boat,Car,Electric Bicycle,Fan,Game machines,Home appliance , Beauty product, Pager, Personal care, Health product equipment, Massager, Massage Rod, Eye Massager, Body Massager, Hair dryer, Hair Clipper, Electric shaver, Electric tool power, vehicles equipments, toys and so on.

    1530259202(1)

    0757641(1)

    Main Export Markets of Our  Mini Vibrating motor:

    South Asia: 43%

    North America: 27%

    Western Europe: 25%

    Northern Europe: 5%



    Packaging & Shippment:

    1. 50 mini dc drive motors in each PS tray.
    2. Every 20 capsules as a group, put a plastic cover on the group and wrap it in tape.
    3. Put the wrapped group into a inbox.
    4. Every 8 inboxes are put into an outer case by the ways standard as the drawing.
    5. Quantity and batch number are written on the surface of the outer case.

    1529630010

    1530258916(1)

    Payment & Delivery:

    Payment Method: Advance TT, T/T,Western Union, PayPal, L/C..
    Delivery Details: within 30-50days after confirming the order.1530258982(1)

    Why choose Mini Vibrating phone motor from Leader Micro Electronics?

    1530259216(1)



    HTB1XNpURVXXXXaqXVXXq6xXFXXXQ.jpg_

    HTB1LVunRVXq6xXFXXXc.jpg_

    1530258880
