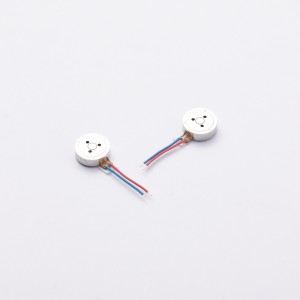

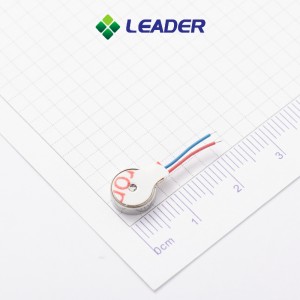

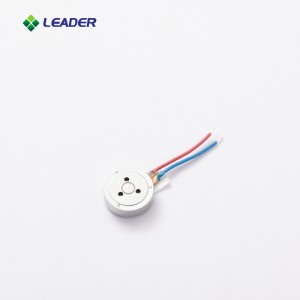

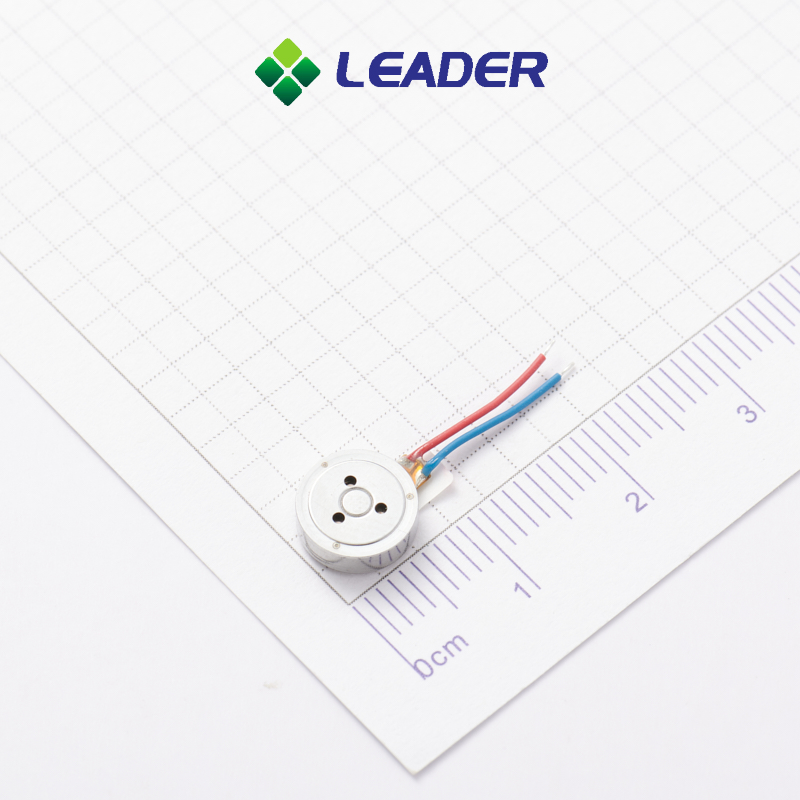

Motor For Medical Products Linear motor 0825

Motor For Medical Products Linear motor   0825

Short Description:


  • FOB Price: US $0/ Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 3000000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Brand Name: Leader
  • Construction: Permanent Magnet
  • Protect Feature: Totally Enclosed
  • Technical Datas: Can be customized
  • Product Detail

    Product Tags

    The linear electric motor has faster acceleration compared to the ERM vibration motor. It takes only 50ms from the standstill to the highest vibration level, while the ERM vibration motor needs 100ms~200ms. Higher accelerations result in better haptic feedback, so more and more mobile phone brands are starting to use linear motors instead of traditional motors.

    Because of the mechanical structure, the ERM motor have brush abrasion during the working process. But, linear vibration motors are effectively brushless as they use a voice-coil to drive the mass. This means that the only moving parts that are prone to failure are the springs. These springs are modelled with FEA and are operated within their non-fatigue zone. So the lifetime of the linear motor is usually more than five times that of the traditional motor.

    _SGS5217_SGS5161

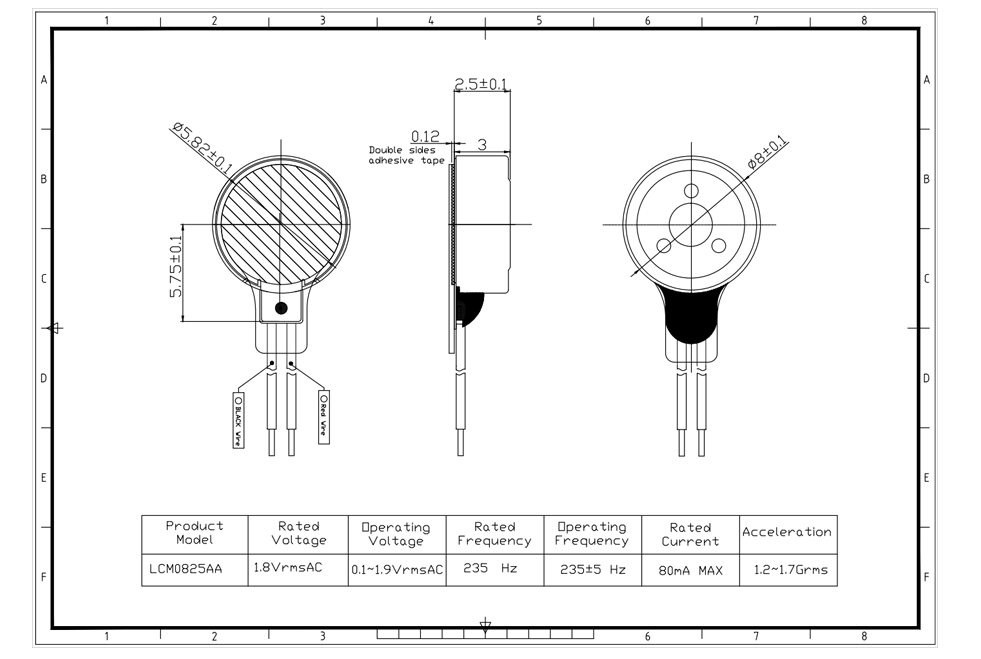

    Product Technical Parameters of Linear Vibrating motor

    1530512114(1)

    Place of Origin Guangdong, China (Mainland)
    Model Number  0825
    Usage Mobile phone, Watch and Band,Massagers,Medical apparatus and instruments
    Diameter 8mm
    Thickness 2.5mm
    Certification  ISO9001,ISO14001,OHSAS18001
    Type Micro Motor
    Feature  Vibration
    Rated frequency  235Hz
    Rated current 80mA Max
    Rated voltage  1.8(Vms )AC
    Operating voltage   0.1~1.9(Vms)AC
    Operating frequency  235±5Hz
    F0 Acceleration  1.2~1.7G
    Life 1.8V, 2S ON,1S OFF,  1,000,000 cycles

    0825XIAN

    The main features of Mini Linear level motor :

    (1) This is the newly developed Linear Motor vibrating in direction Z with a very long life time of 1 million cycles at the test mode 2s On 1s Off as one cycle.

    (2) This Linear Motor also have a very strong acceleration/ vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.

    (3) To use this Linear Motor, users need to add IC drivers in the PCB to activate this motor.

    (4) This Linear Motor is specially for high-end and high reliable electronic consumer products.

    Main Export Markets of Our Mini Vibrating Motor:

    South Asia: 43%

    North America: 27%

    Western Europe: 25%

    Northern Europe: 5% HTB1al1BRVXXXXcQXXXXq6xXFXXX6

    The application of Mini Vibrating Magnet motor :  1530259202(1)



    Packaging & Shippment:

    1. 50 mini dc drive motors in each PS tray.

    2. Every 20 capsules as a group, put a plastic cover on the group and wrap it in tape.

    3. Put the wrapped group into a inbox.

    4. Every 8 inboxes are put into an outer case by the ways standard as the drawing.

    5. Quantity and batch number are written on the surface of the outer case. 1529630010 1530258916(1)



    Inspection Instrument:

    1530259183(1)

    Certificate:

    1530259216(1)

    HTB1XNpURVXXXXaqXVXXq6xXFXXXQ.jpg_ HTB1LVunRVXq6xXFXXXc.jpg_
