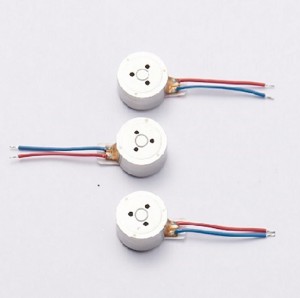

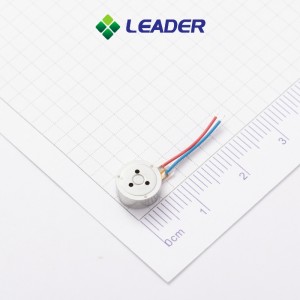

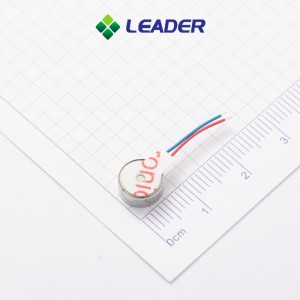

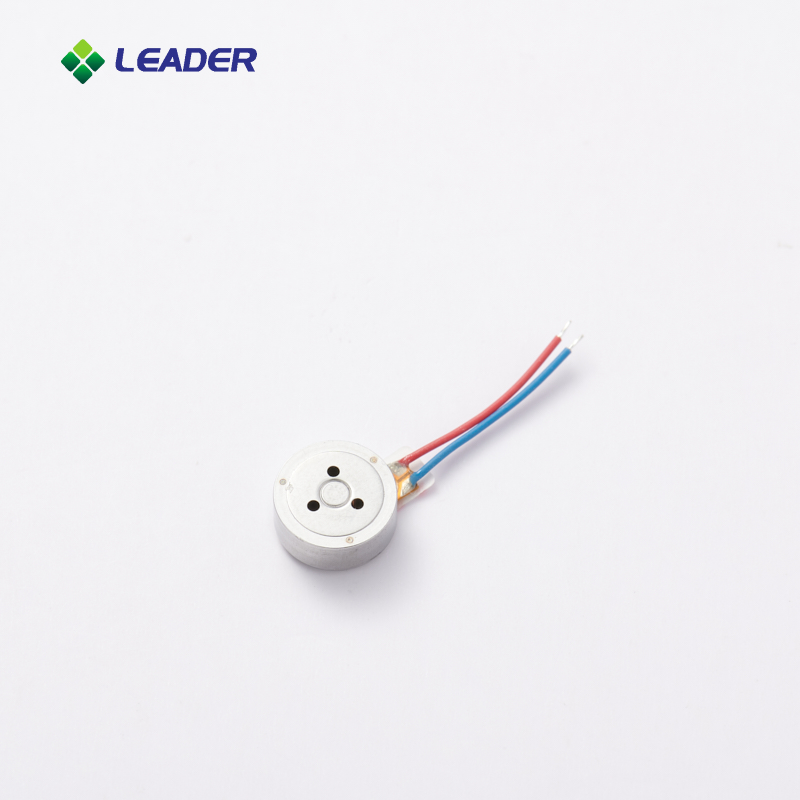

Low Volt Motor of Linear motor 0832

Low Volt Motor of Linear motor   0832

Short Description:

Leader Micro Electronic Co.,Ltd. established in 2007, which located in Guangdong Huizhou China. The company is engaged in the development, manufacturing and marketing of micro motors with more than 10 years’ experience.  We specialize in manufacturing  flat motor, linear motor, brushless motor, coreless motor, SMD motor, Air-modeling motor, deceleration motor and so on, as well as micro motor in multi-field application. It has passed ISO9001:2015, ISO14001:2015, and OHSAS18001:2011, to ensure...


  • FOB Price: US $0/ Piece
  • Min.Order Quantity: 100 Piece/Pieces
  • Supply Ability: 3000000 Piece/Pieces per Month
  • Port: Shenzhen
  • Payment Terms: L/C,D/A,D/P,T/T
  • Brand Name: Leader
  • Construction: Permanent Magnet
  • Protect Feature: Totally Enclosed
  • Technical Datas: Can be customized
  • Product Detail

    Product Tags

    Leader Micro Electronic Co.,Ltd. established in 2007, which located in Guangdong Huizhou China. The company is engaged in the development, manufacturing and marketing of micro motors with more than 10 years’ experience.  We specialize in manufacturing  flat motor, linear motor, brushless motor, coreless motor, SMD motor, Air-modeling motor, deceleration motor and so on, as well as micro motor in multi-field application. It has passed ISO9001:2015, ISO14001:2015, and OHSAS18001:2011, to ensure the superiority of product quality and the stability of product performance. Our company has built a complete system for process, management and service. That have lain a foundation for us to develop from a uprising star to a leader within the industry. _SGS5217_SGS5161

    Product Technical Parameters of Linear Vibrating motor

    1530512114(1)

    Place of Origin  Guangdong, China (Mainland)
    Model Number   0832
    Usage  Mobile phone, Watch and Band,Massagers,Medical apparatus and instruments
    Certification  ISO9001,ISO14001,OHSAS18001
    Type Micro Motor
    Feature  Vibration
    Rated current  80mA Max
    Rated voltage  1.8(V )DC
    Rated frequency  235Hz
    Operating voltage  0.1~1.9(V )DC
    Operating frequency  235±5Hz
    F0 Acceleration   1.2~1.7G
    Life  1.8V, 2S ON,1S OFF,  1,000,000 cycles

    0832

    The main features of Mini Linear level motor :

    (1) This is the newly developed Linear Motor vibrating in direction Z with a very long life time of 1 million cycles at the test mode 2s On 1s Off as one cycle.

    (2) This Linear Motor also have a very strong acceleration/ vibration force at its peak acceleration value around 1.8G, much stronger than other normal brush type coin motors at 0.6-0.8G usually.

    (3) To use this Linear Motor, users need to add IC drivers in the PCB to activate this motor.

    (4) This Linear Motor is specially for high-end and high reliable electronic consumer products.

    Main Export Markets of Our Mini Vibrating Motor:

    South Asia: 43%

    North America: 27%

    Western Europe: 25%

    Northern Europe: 5% HTB1al1BRVXXXXcQXXXXq6xXFXXX6

    The application of Mini Vibrating Magnet motor :  1530259202(1)



    Packaging & Shippment:

    1. 50 mini dc drive motors in each PS tray.

    2. Every 20 capsules as a group, put a plastic cover on the group and wrap it in tape.

    3. Put the wrapped group into a inbox.

    4. Every 8 inboxes are put into an outer case by the ways standard as the drawing.

    5. Quantity and batch number are written on the surface of the outer case. 1529630010 1530258916(1)



    Inspection Instrument:

    1530259183(1)

    Certificate:

    1530259216(1)

    HTB1XNpURVXXXXaqXVXXq6xXFXXXQ.jpg_ HTB1LVunRVXq6xXFXXXc.jpg_
