There ar 2 basic kinds of small vibrating motors. associate eccentric rotating mass vibration motor (ERM) uses atiny low unbalanced mass on a DC motor once it rotates it creates a force that interprets to vibrations. A linear resonant mechanism (LRA) contains atiny low internal mass connected to a spring, that creates a force once driven.

As specialists within the provide and style of electrical moving motors, you’ll realize our equipped small moving motor in our product catalogue. If you cannot realize precisely what you {would like|you wish} or would like to debate a project, please don’t hesitate to contact our engineers here. If you like to scan on-line, you’ll realize scores of extra info and guides to assist you perceive however industrial vibration motor work.

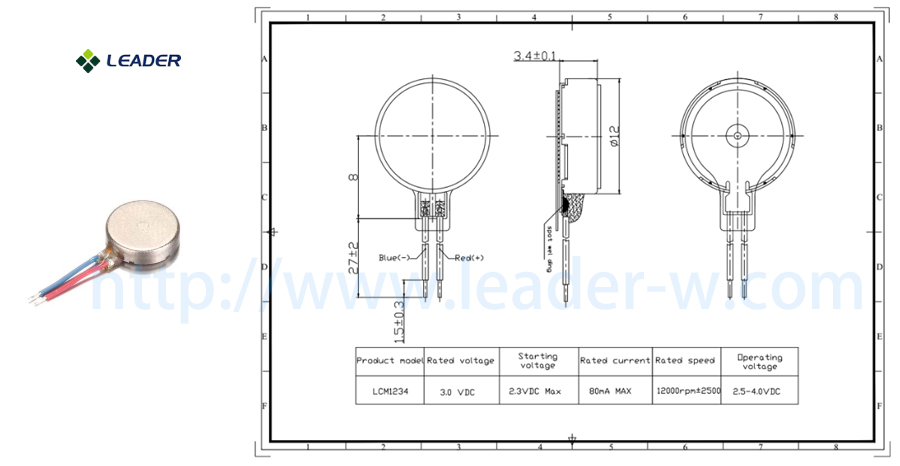

vibrating motor in cell phone

How A Mobile Phone Vibration Motor Looks Like And Works Opened Up.

Micro vibrating motor are around since the Nineteen Sixties. Initially, they were developed for massaging merchandise, however their development took a brand new flip within the Nineteen Nineties once customers needed vibra-call on their mobile / cell phones. Today, designers and users alike have learned from twenty years of mobile phones, that vibration alerting is a wonderful thanks to alert operators to a happening.

These days miniature moving motors square measure employed in a large vary of merchandise, like tools, scanners, medical instruments, GPS trackers, and management sticks. Vibrator motors are the most actuators for perception feedback that is an affordable thanks to increase a product’s worth and differentiate it from the competition.

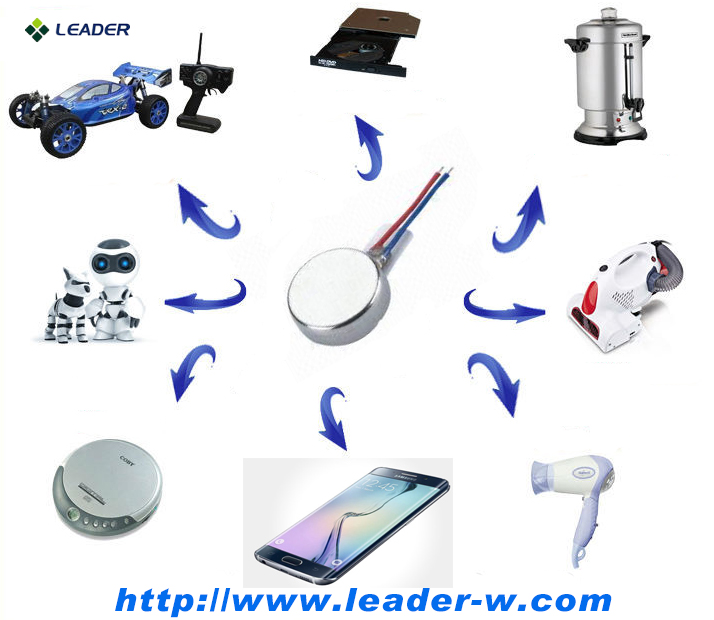

Due to their tiny size and fogbound vibration mechanism, coin vibration motor square measure a well-liked selection for several totally different applications. they’re nice for haptics, significantly in hand-held instruments wherever area is at a premium:

  • Mobile phones
  • RFID scanners
  • Industrial tools or instrumentation user interfaces
  • Portable instruments
  • Medical applications

General Layout And Operation

Our micro vibrating motor square measure all Eccentric Rotating Mass (ERM) motors. so they will be driven within the same manner as their beeper motor counterparts. they need a similar motor drive principles, as well as H-bridge electronic equipment for active braking.

Brushed coin vibration motors square measure made from a flat PCB on that the 3-pole commutation circuit is ordered out around an indoor shaft within the centre. The vibration motor rotor consists of 2 ‘voice coils’ and alittle mass that’s integrated into a flat plastic disc with an effect within the middle, that sits on a shaft. 2 brushes on the undersurface of the plastic disc create contact to the PCB commutation pads and supply power to the voice coils that generate a force field. This field interacts with the flux generated by a disc magnet that’s hooked up to the motor chassis.

The commutation circuit alternates the direction of the sphere through the voice coils, and this interacts with the N-S pole pairs that square measure designed into the metallic element magnet. The disc rotates and, because of the intrinsical off-centred eccentric mass, the motor vibrates!


small electric vibrating motors square measure designed to be simple to mount. they are available with either spring PCB connectors or a high-strength long life self-adhesive backing sheet that’s pre-attached to the bottom of the chassis. The adhesive permits for a secure mounting of the vibration motor to a large vary of surfaces like PCBs or flat internal surfaces of the enclosure and makes producing installation quick and clean.

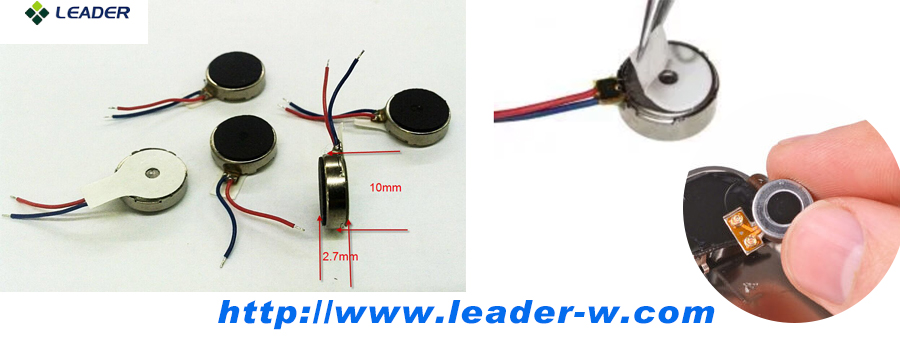

Self-adhesive vibration motor mounting

vibrating motors for sale

vibration motors

small vibrating motors

small vibration motor

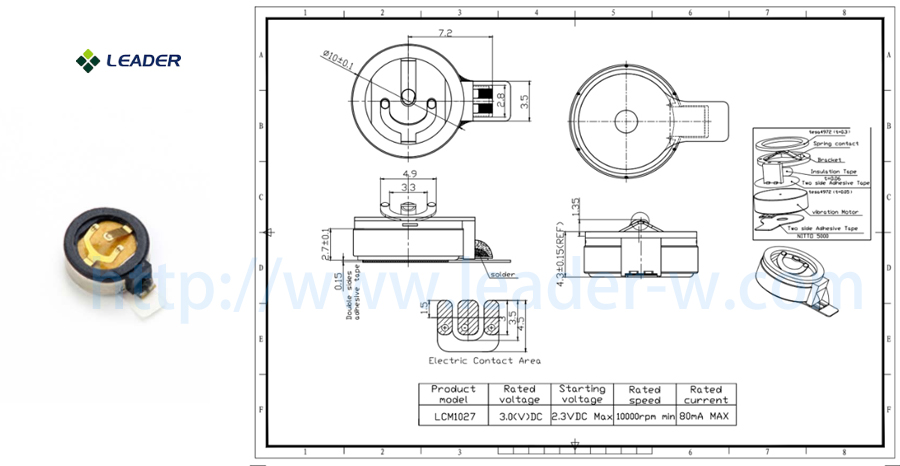

electric vibrating motors
