Vibration Motor is a mechanical device to generate vibrations. The vibration is often generated by an electric motor with an unbalanced mass on its driveshaft.

When smartphones and pagers vibrate, the vibrating alert is produced by a small component that is built into the phone or pager.

There are many different types of vibrator motor. Commonly used cell phone vibration motor, massage vibration motor,pager vibration motor and smartphone vibration motor.

Vibration motor principle

There are there types of vibration motor.

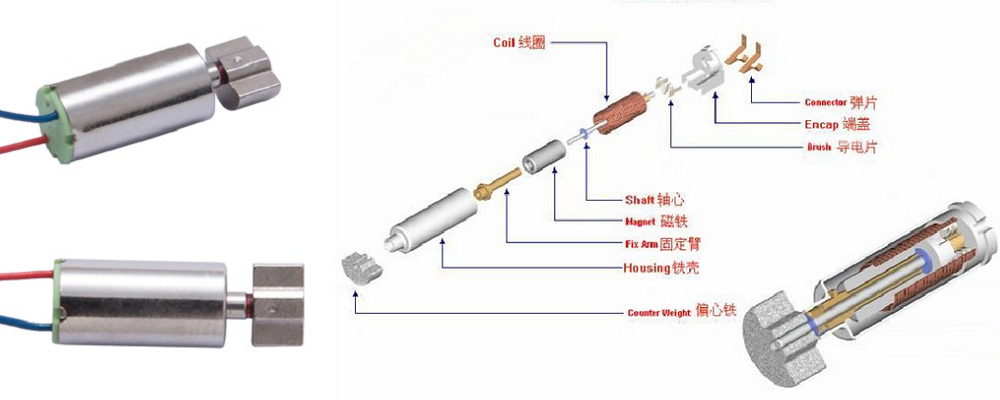

1、Eccentric vibration motor (ERM) uses a small unbalanced mass on a DC motor when it rotates it creates a force that translates to vibrations.

http://www.leader-w.com/products/cylindrical-motor/

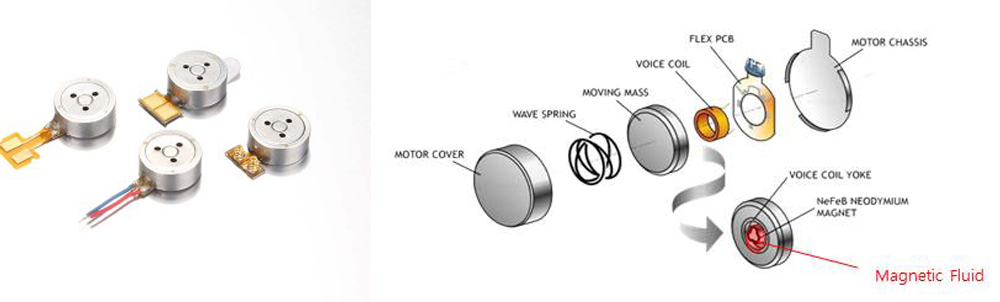

2、Linear vibration motorcontains a small internal mass attached to a spring, which creates a force when driven.

http://www.leader-w.com/products/linear-motor/

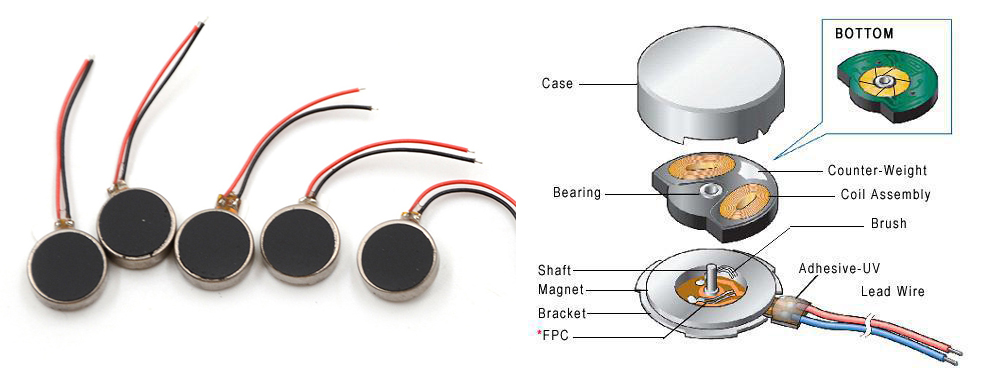

3、Coin Vibration Motors, also known as shaftless or pancake vibrator motors, generally in Ø8mm – Ø12mm . Pancake motors are compact and convenient to use.

http://www.leader-w.com/products/coin-type-motor/

What makes a vibration motor vibrate?

A vibration motor is essentially a motor that is improperly balanced.

There is an off-centered weight attached to the motor’s rotational shaft that causes the motor to wobble.

The amount of wobble can be changed by the amount of weight , the weight’s distance from the shaft, and the speed at which the motor spins.

Video from YouTube

Lifetime Of Vibration Motors

The industry standard is 100k cycles of 1 second on followed by 1 second off.

Type
Model
Lifetime
BLDC Vibration Motor               0825 3.0V , 0.5S on,0.5S , 100,000 cycles
0625 3.3V, 2S on, 1S off, 500,000 cycles
SMT Vibration Motor Z4FC1B1301781                 2.5S on,2.5S off, 53,000 cycles
Z4MFB81796121 2.5S on,2.5S off, 53,000 cycles
Z4NC1A1591901 2.5S on,2.5S off, 53,000 cycles
Z30C1T8219651 2.5S on,2.5S off, 53,000 cycles
Z4PC3B8129521 2.5S on,2.5S off, 53,000 cycles
Coin Vibration Motor 0720 3.0V,2S ON, 2S OFF, 35,000 cycles
0834 3.0V, 1S ON, 2S OFF, 100,000 cycles
0830 3.0V, 1S ON, 2S OFF, 100,000 cycles
0827 3.0V, 1S ON, 2S OFF, 100,000 cycles
0825 3.0V, 1S ON, 2S OFF, 100,000 cycles
0820 2.5S on,2.5S off, 53,000 cycles
1034 3.0V, 1S ON, 2S OFF, 100,000 cycles
1030 3.0V, 1S ON, 2S OFF, 100,000 cycles
1027 3.0V, 1S ON, 2S OFF, 100,000 cycles
1020 3.0V, 1S ON, 2S OFF, 100,000 cycles
LCM1234 3.0V, 2S ON, 1S OFF, 50,000 cycles
LCM1227 3.0V, 2S ON, 1S OFF, 50,000 cycles
FPCB Coin Type Motor F-PCB 1020、1027、1030、1034 3.0V, 1S ON, 2S OFF, 100,000 cycles
F-PCB 0820、0825、0827、0830、0834 3.0V, 1S ON, 2S OFF, 100,000 cycles
shrapnel coin type motor 1030 3.0V, 1S ON, 2S OFF, 100,000 cycles
1027  3.0V, 1S ON, 2S OFF,  100,000 cycles
Sonic Vibration Motor LDSM1840 3.7V , 250Hz,80%Duty cycle,working life 300h
Linear Vibration Motor 0832 1.8V, 2S ON,1S OFF, 1,000,000 cycles
0825 1.8V, 2S ON,1S OFF, 1,000,000 cycles
1036L 1.8V, 2S ON,1S OFF, 1,000,000 cycles
LCM0832AF 1.8V, 2S ON,1S OFF, 1,000,000 cycles
LD0832AS 1.8V, 2S ON,1S OFF, 1,000,000 cycles
Cylindrical Motor LD320802002-B1 3.0V,0.5S ON,0.5S OFF, 200,000 cycles
LD0408AL4-H20 3.0V,1S ON,1S OFF, 200,000 cycles
LD8404E2 3.0V,1S ON,1S OFF, 200,000 cycles
LD8404E2C-A640 3.0V,1S ON,1S OFF, 200,000 cycles
LD8404E7 3.0V,1S ON,1S OFF, 200,000 cycles
LD8404E18 1.8V, 2S ON,1S OFF, 1,000,000 cycles

Advantages/Disadvantages of Vibration Motors

Advantages/Disadvantages of Coin Vibration Motors

Due to their more compact form factor, use Coin vibration motors for smaller devices or when space is a constraint. Due to their shape, these vibration motors are very easy to mount, since they have an adhesive backing that you can stick to your device. With their smaller size, however, vibrations are often not as powerful as eccentric vibration motor in the cylindrical form factor.

Advantages/Disadvantages of eccentric vibration motor

The advantages of eccentric vibration motor are that they’re inexpensive and offer relatively strong vibrations when compared to coin vibration motors.

Advantages/Disadvantages of linear vibration motor

Linear vibration motor offer the same advantage as Coin vibration motors, due to compact form factor and the ability to also install via an adhesive backing. While they are generally more expensive, linear vibration motor are very efficient and allow for more precise and complex vibrations for an improved experience.

Unlike eccentric vibration motor, the vibration oscillates linearly .

Linear vibration motor are a little more difficult to incorporate. Where eccentric vibration motor use a DC signal, Linear vibration motor require an AC signal, and the frequency range at which this motor resonates is a lot narrower, so it requires a more precise signal to achieve optimal vibration.
