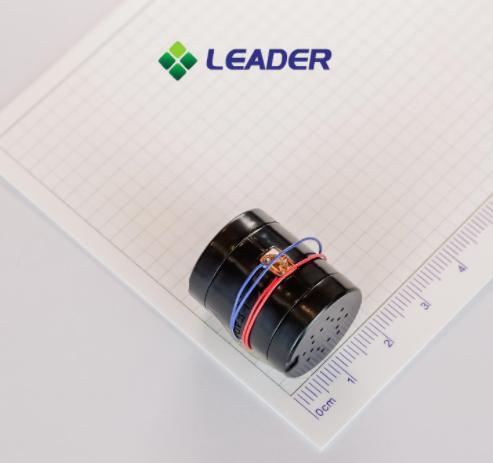

One of the defining characteristics of the LD2024 is its ultra-wide-frequency positioning.

Frequency is extremely important in haptic design because changing the vibration frequency changes how the vibration is perceived.

A low-frequency effect can feel:

Deep · Heavy · Powerful

while a higher-frequency effect can feel:

Sharper · Finer · More Detailed

By giving designers more room to work with frequency, the haptic system can potentially create a broader range of tactile sensations.

LEADER's LD2024 is specified around a 65±10Hz rated frequency, while its ultra-wide-frequency design is intended to support richer haptic effects beyond a simple single-frequency vibration experience.

This is one of the most important selling points for the LD2024.

A modern gaming controller should not necessarily produce the same vibration for every event.

The actuator and driver system can be designed to vary:

• Frequency
• Amplitude
• Duration
• Pulse sequence
• Start/stop behavior
• Waveform

That means the same motor can participate in different haptic effects.

Example: One Motor, Multiple Experiences

Mode A — Soft Confirmation

Light amplitude
Short duration
Higher-frequency sensation

↓

Mode B — Weapon Impact

High amplitude
Short pulse
Sharp braking

↓

Mode C — Engine Vibration

Continuous waveform
Moderate amplitude
Repeated oscillation

↓

Mode D — Explosion

High amplitude
Multi-stage waveform
Longer duration

This is where the LD2024 moves beyond the traditional idea of a "vibration motor."

It becomes a programmable haptic actuator.

For a gaming controller, users normally hold the product with both hands.

The haptic energy therefore needs to travel through the controller housing and remain perceptible through the user's palms and fingers.

LEADER specifies the LD2024 at 2.5±0.5Grms vibration force, positioning it for stronger tactile feedback.

Compared with the much smaller 8mm/10mm LRA format, the LD2024 is designed to deliver a more substantial vibration experience in applications where the physical space and power budget can support it.

This can be particularly valuable for:

• Large game controllers
• Arcade controllers
• Racing controllers
• Flight simulation controllers
• VR controllers
• Haptic handheld devices

This is an important distinction.

A powerful haptic actuator does not necessarily need to produce an uncomfortable vibration.

The goal is:

High output + controlled waveform + appropriate frequency + optimized mounting

The result can be both:

Powerful

and

Fine

at the same time.

For example, a game controller could use a strong low-frequency effect for an explosion and then immediately switch to a lighter, sharper effect for a button interaction.

That contrast is what makes haptic feedback feel more realistic.

Haptic feedback is only convincing when it happens at the right moment.

If a player shoots a weapon and feels the vibration several hundred milliseconds later, the effect loses its connection with the event.

The LD2024 is specified with a maximum rise time of 50ms and maximum fall time of 80ms under LEADER's published conditions.

The combination of fast response and controlled braking is important for creating:

Sharp

→

Discrete

→

Repeatable

haptic events.

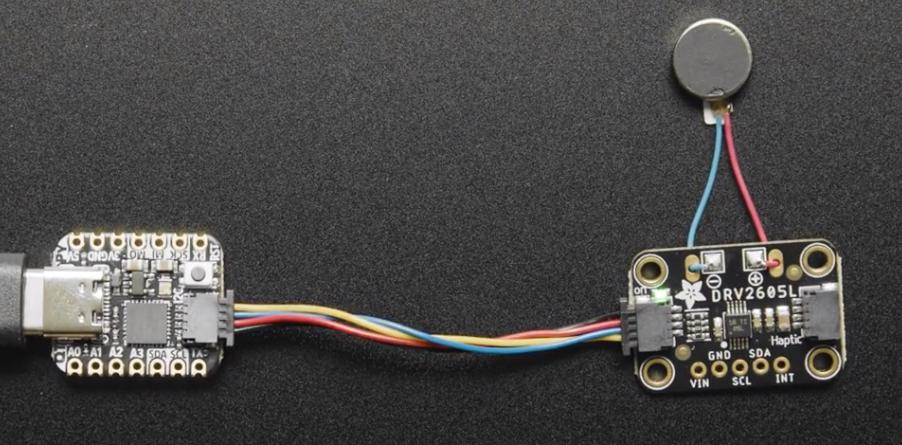

Modern LRA drivers can also use overdrive, braking, and resonance tracking techniques to improve transient behavior. Texas Instruments explains that auto-resonance tracking can help achieve faster start and stop behavior and sharper haptic effects.

Gaming controllers can generate considerable mechanical noise from buttons, triggers, switches, fans, and other components.

The haptic motor should therefore ideally contribute tactile information without becoming an unwanted audible source.

LEADER lists low noise among the LD2024's main features.

This is particularly useful when the controller is being used:

• At home
• In competitive gaming
• With headphones
• In VR environments
• In shared spaces

The objective is simple:

Feel more. Hear less.
