vibration motor manufacturers

Product Description

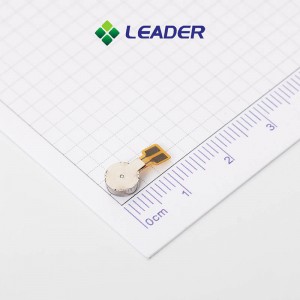

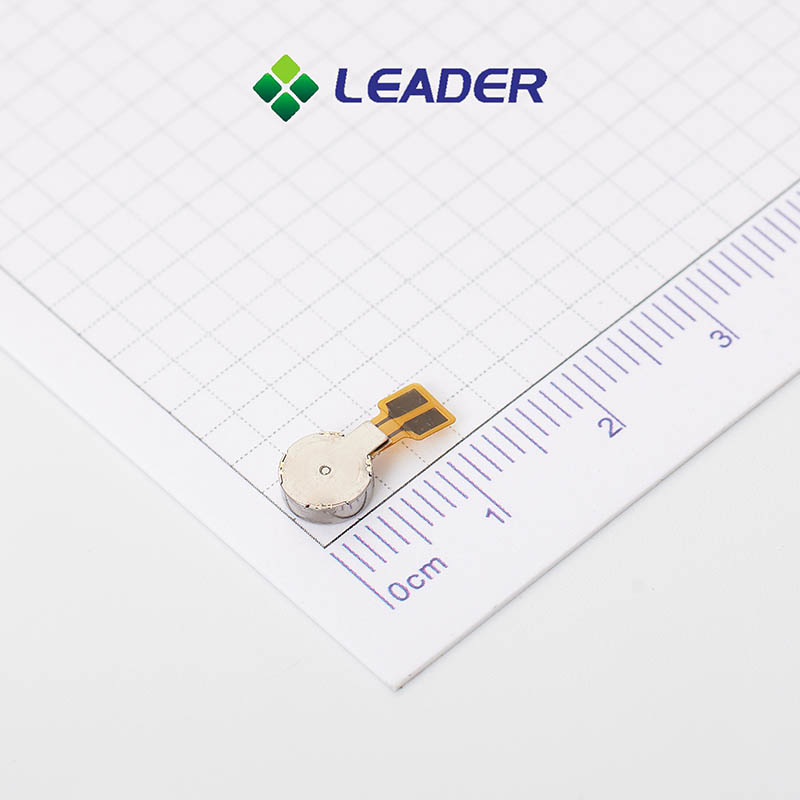

Dia 6*2.5mm BLDC Dc Motor | Brushless Motor | LEADER FPCB-0625

Short Description:

Leader Micro Electronics currently produces 6mm brushless vibration motors, also known as pancake vibrator motors with diameters of φ6mm-φ12mm.

BLDC motors are convenient to use and can be affixed in place with a solid permanent self-adhesive mounting system.

We offer both lead wire, FPCB, and spring mountable versions for brushless motors. The wire length can be modified and the connector can be added as required.


Product Detail

Company profile

Product Tags

Main Features

- Diameter:φ6/8/12mm

- Full Wave Band IC Inside

- Stronger Vibration Force

- Long Lifespan

- Stable Performance

Write your message here and send it to us
BLDC Dc Motor

Specification

Technology Type: BRUSHLESS
Diameter (mm): 6.0
Thickness (mm): 2.5
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 80
Starting Current (mA): 175
Rated Speed (rpm, MIN): 16000±3000
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 8000
brushless dc motor Engineering drawing

Application

Having a full-wave band IC inside to replace traditional brushes, the small brushless motors has stronger vibration force, longer lifetime and even smaller size. The main applications of brushless motor are smart watches, medical device, beauty devices, robot, etc.

coin lra vibration motors Application

Working with Us

Send Inquiry & Designs

Please tell us what kind of motor you are interested in, and advise the size, voltage, and quantity.

Review Quote & Solution

We will provide a precise quote tailored to your unique needs within 24 hours.

Making Samples

Upon confirming all the details, we will start making a sample and have it ready in 2-3 days.

Mass Production

We handle the production process carefully, ensuring every aspect is expertly managed. We promise perfect quality and timely delivery.

FAQ For Linear Vibration Motor

What type of feedback sensors can be used with 0625 brushless motor?

Answer: This brushless motor can be used with a variety of feedback sensors, including Hall effect sensors.

Is mini brushless motor resistant to shock and vibration?

Answer: Yes, this brushless motor is designed to be highly robust. It can withstand shock and vibration during operation.

What is the power consumption of 0625 brushless motor?

Answer: The power consumption of micro brushless motor depends on the specific model and operating conditions, but typically ranges between 0.1W to 1W.


  • Previous:
  • Next:

  • Quality Control

    We have 200% inspection before shipment and the company enforces quality management methods, SPC, 8D report for defective products. Our company has a strict quality control procedure, which mainly tests four contents as follow:

    Quality Control

    01. Performance Testing; 02. Waveform Testing; 03. Noise Testing; 04. Appearance Testing.

    Company Profile

    Established in 2007, Leader Micro Electronics (Huizhou) Co., Ltd. is a high-tech enterprise integrating R&D, production, and sales of micro vibration motors. Leader mainly manufactures coin motors, linear motors, brushless motors and cylindrical motors, covering an area of more than 20,000 square meters. And the annual capacity of micro motors is nearly 80 million. Since its founding, Leader has sold nearly a billion of vibration motors all over the world, which are widely used on about 100 kinds of products in different fields. The main applications conclude smartphones, wearable devices, electronic cigarettes and so on.

    Company Profile

    Reliability Test

    Leader Micro has professional laboratories with a full set of testing equipment. The main reliability testing machines are as below:

    Reliability Test

    01. Life Test; 02. Temperature & Humidity Test; 03. Vibration Test; 04. Roll Drop Test;05. Salt Spray Test; 06. Simulation Transport Test.

    Packaging & Shipping

    We support air freight, sea freight and express.The main express are DHL, FedEx, UPS, EMS, TNT etc. For the packaging: 100pcs motors in a plastic tray >> 10 plastic trays in a vacuum bag >> 10 vacuum bags in a carton.

    Besides, we can provide free samples on request.

    Packaging & Shipping
