8mm Flat Vibration Motor – 2.7mm Thickness | LEADER FPCB-0827
Main Features
Specification

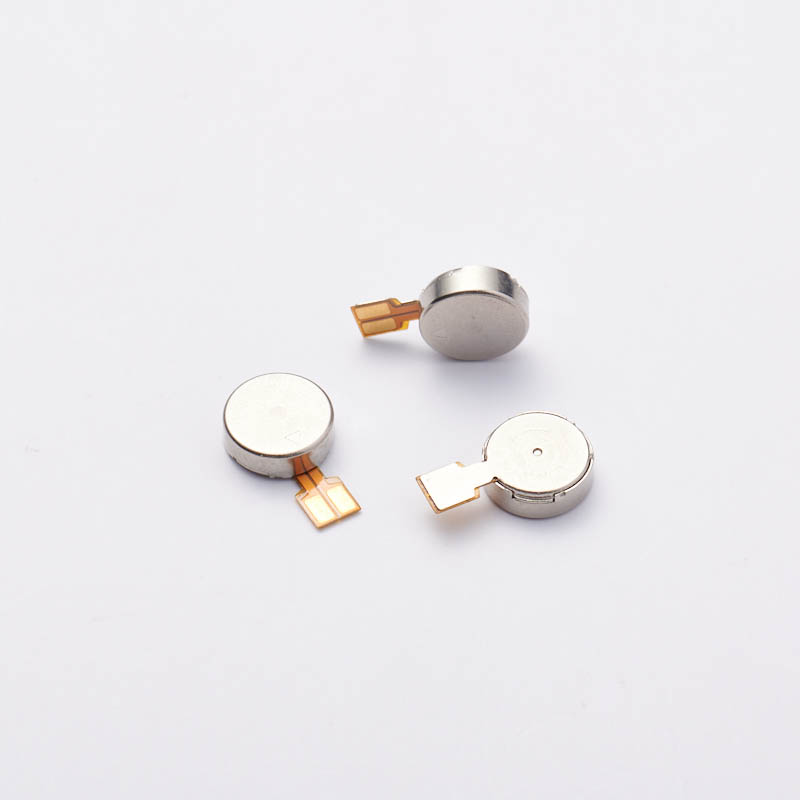

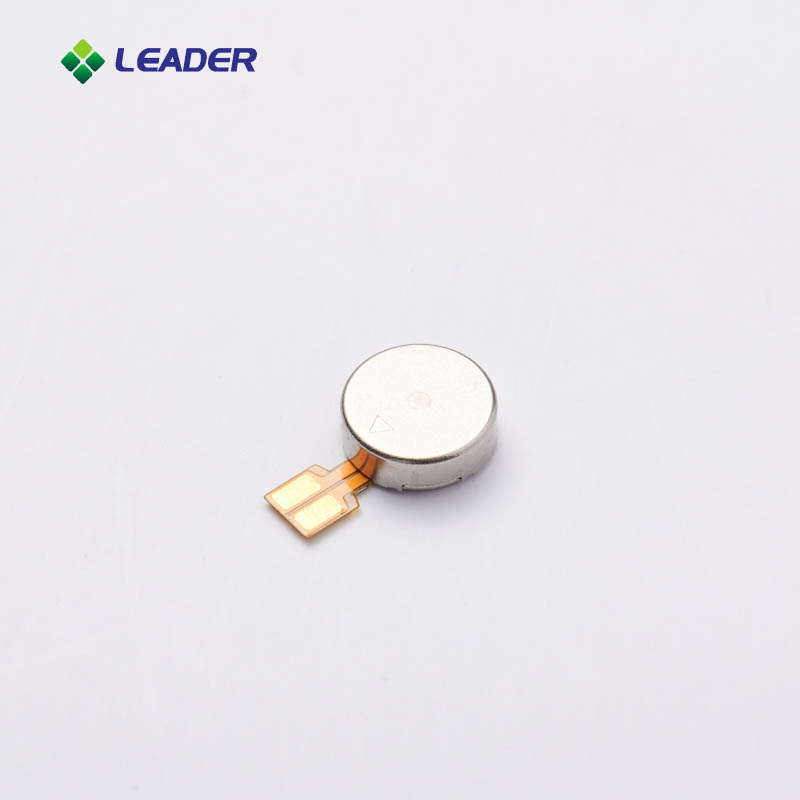

8mm flat vibrating motor is used to provide vibration function to meet the needs of increasingly slim and portable devices. It provides reliable performance, strong power and longer service life. When you receive a text message or a call on your phone, the motor starts high-speed eccentric rotation, activating the vibration function on your phone.
| Technology Type: | BRUSH |
| Diameter (mm): | 8.0 |
| Thickness (mm): | 2.7 |
| Rated Voltage (Vdc): | 3.0 |
| Operating Voltage (Vdc): | 2.7~3.3 |
| Rated Current MAX (mA): | 80 |
| Starting Current (mA): | 120 |
| Rated Speed (rpm, MIN): | 10000 |
| Vibration Force (Grms): | 0.6 |
| Part Packaging: | Plastic Tray |
| Qty per reel / tray: | 100 |
| Quantity - Master box: | 8000 |
Application
The coin motor has many models to select and it's very ecomonical because of the highly automatic production and the lower labor costs. Due to their small size and enclosed vibration mechanism, 8mm flat vibrating motor are a popular choice for many different applications. The main applications of coin vibration motor are smart phones, smart watches, bluetooth earmuffs, beauty devices, toys, health care, medical device, electronic device and so on. They are commonly used to provide the user with discrete alerts, alarms or haptic feedback.
Keywords
Small vibration motor, haptic motor, 8mm micro coin vibration motor, micro vibration motor, micro dc vibrating motor, 3v motor, small dc motor, 8mm flat vibrating motor.
Development Samples:
We can provide 10pcs samples for free, you just need to bear the shipping cost.
Engineering & Manufacturing:
Please contact our sales engineers to request a production quote and customization service consultation.
Working with Us
FAQ For Coin Vibration Motor
- The dimensions are 8mm in diameter and 2.7mm in thickness.
- CW(clockwise) or CCW(contrary clockwise)
- The operating temperature range is -20~+60℃.
Still Can't Find Ideal 8mm Flat Vibrating Motor?
If you have any questions about micro DC motors, specifications, datasheets or quotes, please feel free to contact us.
If you require custom lead wire connections for your vibration motor, such as alternate lead lengths with connectors (e.g. Molex, JST) and strip lengths, simply contact us leader@leader-cn.cn and share your specific requirements.
Quality Control
We have 200% inspection before shipment and the company enforces quality management methods, SPC, 8D report for defective products. Our company has a strict quality control procedure, which mainly tests four contents as follow:
01. Performance Testing; 02. Waveform Testing; 03. Noise Testing; 04. Appearance Testing.
Company Profile
Established in 2007, Leader Micro Electronics (Huizhou) Co., Ltd. is a high-tech enterprise integrating R&D, production, and sales of micro vibration motors. Leader mainly manufactures coin motors, linear motors, brushless motors and cylindrical motors, covering an area of more than 20,000 square meters. And the annual capacity of micro motors is nearly 80 million. Since its founding, Leader has sold nearly a billion of vibration motors all over the world, which are widely used on about 100 kinds of products in different fields. The main applications conclude smartphones, wearable devices, electronic cigarettes and so on.
Reliability Test
Leader Micro has professional laboratories with a full set of testing equipment. The main reliability testing machines are as below:
01. Life Test; 02. Temperature & Humidity Test; 03. Vibration Test; 04. Roll Drop Test;05. Salt Spray Test; 06. Simulation Transport Test.
Packaging & Shipping
We support air freight, sea freight and express.The main express are DHL, FedEx, UPS, EMS, TNT etc. For the packaging: 100pcs motors in a plastic tray >> 10 plastic trays in a vacuum bag >> 10 vacuum bags in a carton.
Besides, we can provide free samples on request.
