Product Description

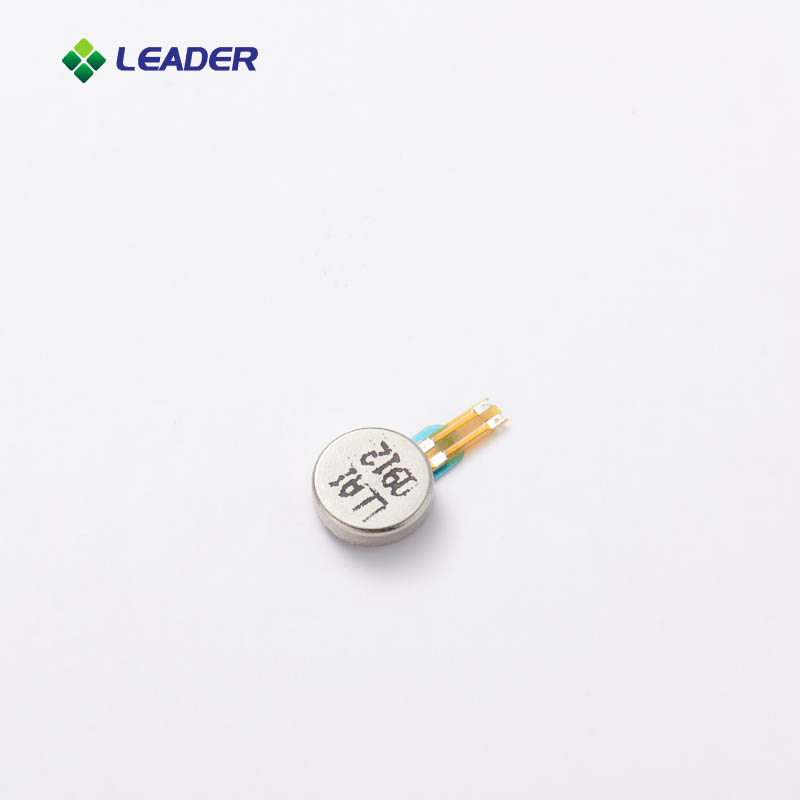

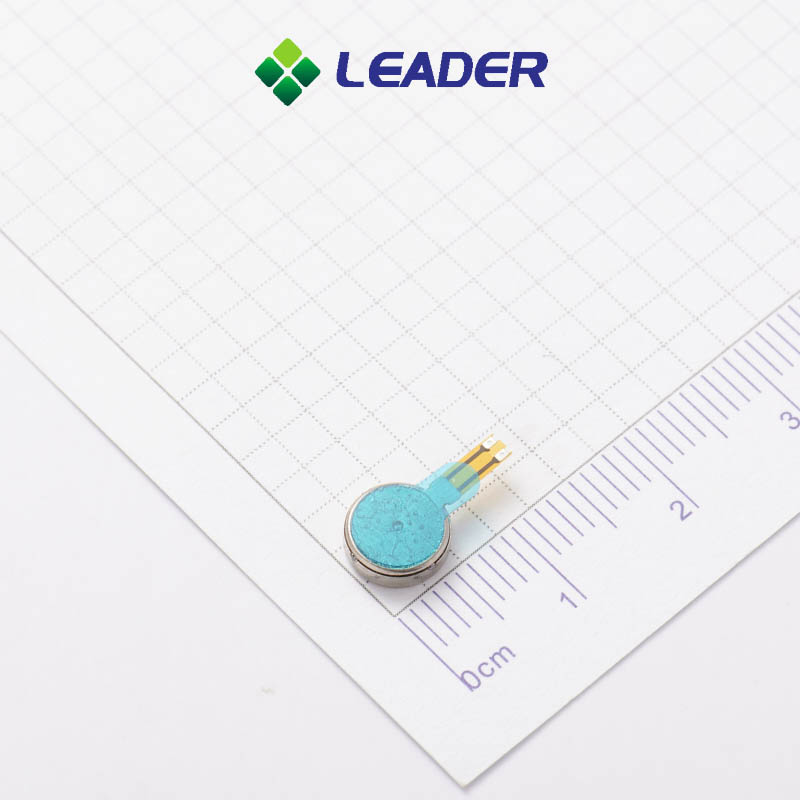

Dia 7*2.0mm Small Coin Vibration Motor 7mm | LEADER FPCB-0720

Short Description:

The 7mm brushed motor is a compact and efficient small vibration device. It commonly used in mobile devices, smart wearable devices and other small electronic products.

Its small size and strong vibration make it suitable for providing vibration feedback in a limited space.

This type of mini vibration motor can produce rapid and sustained vibrations through electrical excitation, allowing it to provide vibration alerts or feedback to equipment.

Product Detail

Company profile

Product Tags

Main Features

- Diameter Range: φ7mm - φ12mm

- Low Power Consumption

- Design with compact and lightweight

- Wide Range of Models

Write your message here and send it to us

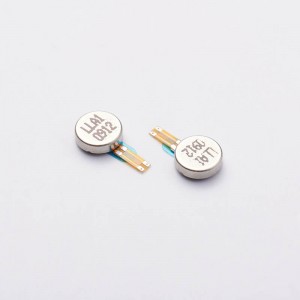

electric mini motor


7mm diameter coin vibration motor can operate using DC voltage or PWM signals. Although the driver IC is not necessary for operation, it can be used to create different tactile effects. Custom foam padding or PSA options are also available for mass production orders.

Technology Type: BRUSH
Diameter (mm): 7.0
Thickness (mm): 2.0
Rated Voltage (Vdc): 3.0
Operating Voltage (Vdc): 2.7~3.3
Rated Current MAX (mA): 85
Starting Current (mA): 120
Rated Speed (rpm, MIN): 9000
Vibration Force (Grms): 0.6
Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 8000
mini electric motor Engineering drawing


The coin motor has many models to select and it's very ecomonical because of the highly automatic production and the lower labor costs. The main applications of coin vibration motor are smart phones, smart watches, bluetooth earmuffs and beauty devices.

mini electric motor Application

Working with Us

Send Inquiry & Designs

Please tell us what kind of motor you are interested in, and advise the size, voltage, and quantity.

Review Quote & Solution

We will provide a precise quote tailored to your unique needs within 24 hours.

Making Samples

Upon confirming all the details, we will start making a sample and have it ready in 2-3 days.

Mass Production

We handle the production process carefully, ensuring every aspect is expertly managed. We promise perfect quality and timely delivery.

What are the dimensions of FPCB-0720 coin vibration motor?

- The dimensions are 7mm in diameter and 2.0mm in thickness.

What is the rated voltage and current for the 0720 micro motor?

- The rated voltage is typically between 2.7-3.3v, and the rated current is 80mA.

What is the lifespan of this coin vibration motor?

The lifespan of this coin vibration motor is dependent on usage and operating conditions, but it can typically last up to 50,000 cycles under 1s on, 1s off.

Does this coin vibration motor come with an adhesive backing?

- This type of motor usually comes with adhesive tape and foam.

micro vibration motor, coin vibrator, coin type vibration motor, mini vibration motors, flat vibration motor, coin vibrator

  • Previous:
  • Next:

  • Quality Control

    We have 200% inspection before shipment and the company enforces quality management methods, SPC, 8D report for defective products. Our company has a strict quality control procedure, which mainly tests four contents as follow:

    Quality Control

    01. Performance Testing; 02. Waveform Testing; 03. Noise Testing; 04. Appearance Testing.

    Company Profile

    Established in 2007, Leader Micro Electronics (Huizhou) Co., Ltd. is a high-tech enterprise integrating R&D, production, and sales of micro vibration motors. Leader mainly manufactures coin motors, linear motors, brushless motors and cylindrical motors, covering an area of more than 20,000 square meters. And the annual capacity of micro motors is nearly 80 million. Since its founding, Leader has sold nearly a billion of vibration motors all over the world, which are widely used on about 100 kinds of products in different fields. The main applications conclude smartphones, wearable devices, electronic cigarettes and so on.

    Company Profile

    Reliability Test

    Leader Micro has professional laboratories with a full set of testing equipment. The main reliability testing machines are as below:

    Reliability Test

    01. Life Test; 02. Temperature & Humidity Test; 03. Vibration Test; 04. Roll Drop Test;05. Salt Spray Test; 06. Simulation Transport Test.

    Packaging & Shipping

    We support air freight, sea freight and express.The main express are DHL, FedEx, UPS, EMS, TNT etc. For the packaging: 100pcs motors in a plastic tray >> 10 plastic trays in a vacuum bag >> 10 vacuum bags in a carton.

    Besides, we can provide free samples on request.

    Packaging & Shipping
