In the ever-evolving landscape of consumer electronics and product design, finding the right components that balance functionality, efficiency, and user experience is crucial. One such component that has gained significant traction among product designers and procurement managers is the coin vibration motor, also known as the pancake vibration motor. This compact yet powerful device has become a staple in a wide range of products, offering unique features that enhance user interaction and product performance. In this comprehensive guide, we will delve into the definition, working principles, key advantages, and suitable application scenarios of coin vibration motors, providing you with all the information you need to make informed decisions for your product design projects.
Defining the Coin Vibration Motor

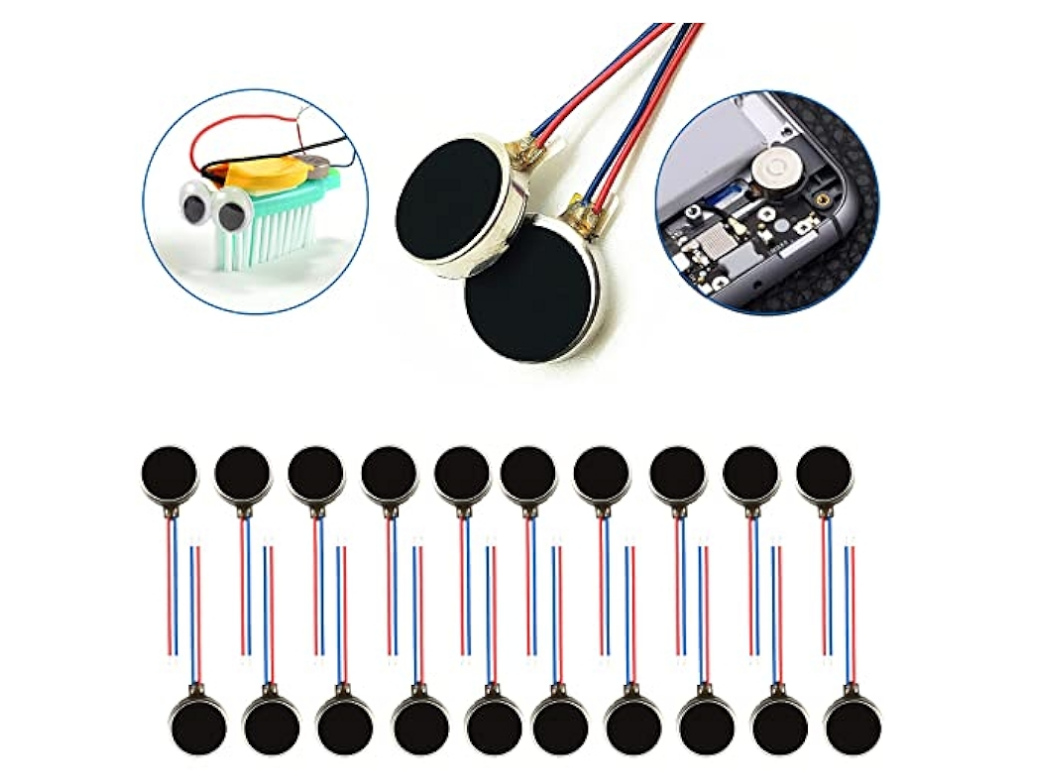

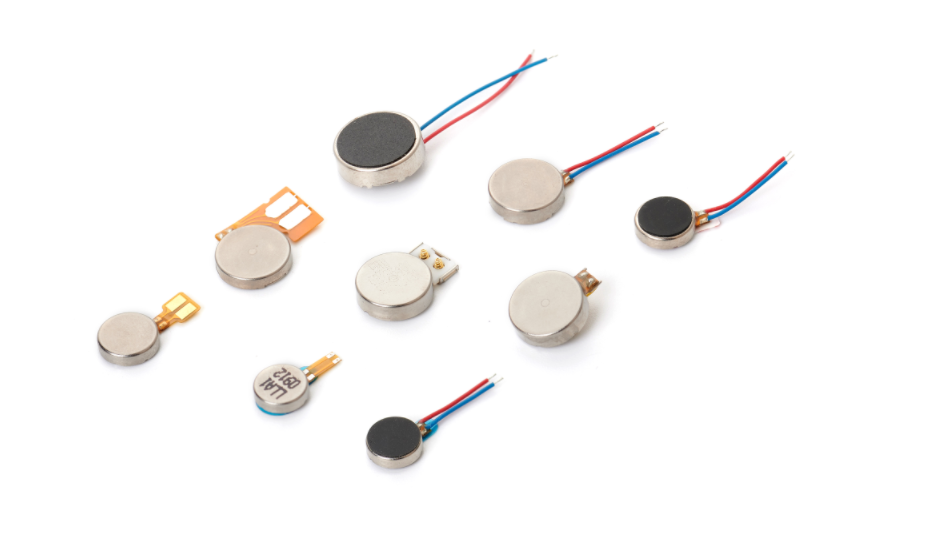

A coin vibration motor, or pancake vibration motor, is a type of eccentric rotating mass (ERM) vibration motor characterized by its flat, circular shape, resembling a coin or a pancake. This design makes it highly space-efficient, allowing it to be easily integrated into thin and compact devices where traditional cylindrical vibration motors may not fit. Unlike linear resonant actuators (LRAs) that produce a sharp, short vibration, coin vibration motors generate a continuous, rumbling vibration through the rotation of an unbalanced mass attached to a small electric motor.
The diameter of coin vibration motors usually ranges from 5mm to 20mm, with a thickness of just 1.8mm to 3mm, making them ideal for applications where space is at a premium.
How Coin Vibration Motors Work

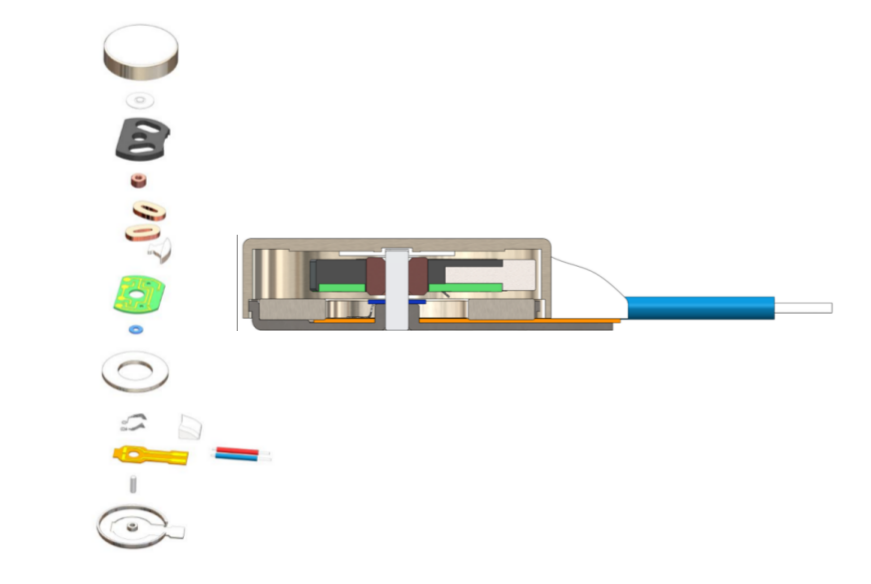

The working principle of a flat vibration motor is based on the concept of eccentric rotation. When an electric current is applied to the motor, the internal rotor, which has an unbalanced mass (the eccentric weight) attached to it, starts to rotate. As the unbalanced mass spins, it creates an off - center force that causes the motor, and consequently the entire device it is installed in, to vibrate.
The speed of the rotation, and thus the intensity of the vibration, can be controlled by adjusting the voltage supplied to the motor. Higher voltage results in faster rotation and a stronger vibration, while lower voltage produces a milder vibration. This simple yet effective mechanism allows for precise control over the vibration feedback, making flat vibration motors suitable for a variety of applications that require different levels of tactile feedback.
Key Advantages of Coin Vibration Motors
Compact and Space-Saving Design
Flat vibration motors are the ideal for thin devices like smartphones and smartwatches, they allow product designers to add vibration functions without sacrificing device thickness or aesthetics.
Cost-Effective
Compared to advanced vibration technologies such as LRA motor, coin vibration motors are cheaper to produce. This makes them a great choice for mass-produced consumer electronics.
Durable and Long-Lasting
With simple mechanical and electrical components, coin vibration motors are reliable and have a long lifespan. Properly designed and manufactured, they can withstand continuous operation, reducing failure risks and maintenance costs.
Suitable Application Scenarios
Mobile Devices Vibrating Motor
Smartphones and tablets often use coin vibration motors to provide tactile feedback for various functions, such as incoming calls, text message notifications, and button presses. The compact size of these motors allows them to be discreetly placed within the device's chassis, enhancing the user experience without adding significant bulk.
Wearable Technology Vibrating Motor
In the realm of wearable devices like smartwatches, fitness trackers, and smart jewelry, coin vibration motors play a crucial role in delivering haptic feedback. They can be used to alert users of incoming notifications, track workout progress, or provide gentle reminders, all while maintaining the sleek and lightweight design that consumers expect from wearables.
Gaming Accessories Vibration Motor

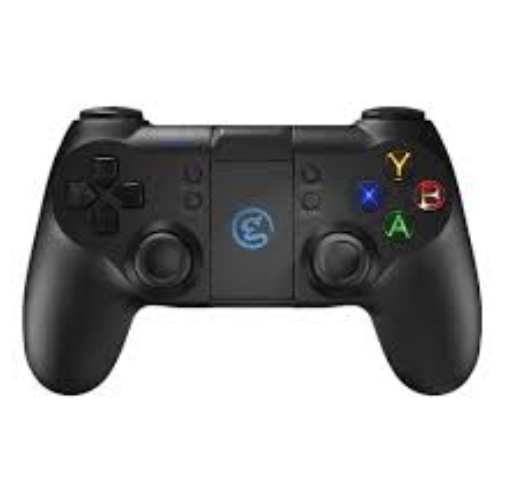

Gaming controllers, both for consoles and mobile gaming, benefit from the use of coin vibration motors. The ability to adjust vibration intensity provides gamers with a more immersive experience, simulating in - game events like explosions, collisions, and weapon recoil.
Medical Devices Vibrating Motor
Some medical devices, such as portable diagnostic tools and patient monitoring equipment, utilize coin vibration motors to alert healthcare providers or patients of important events, such as abnormal vital signs or medication reminders. Their reliability and low power consumption make them a suitable choice for battery - operated medical devices.
Frequently Asked Questions (FAQ)
Can coin type vibration motors be used in high - temperature environments?
While they are designed for standard operating temperatures, using them in extremely high - temperature environments may reduce their lifespan and performance. It's best to consult the LEADER's specifications for the recommended temperature range.
How do I control the vibration intensity of a coin type vibration motors?
The vibration intensity can be controlled by adjusting the input voltage to the motor. Higher voltage leads to stronger vibration, and lower voltage results in a milder vibration.、
Are coin type vibration motors energy - efficient?
Coin vibration motors are relatively energy - efficient, especially when compared to some other types of motors. However, their power consumption can vary depending on the vibration intensity and operating time.
Can coin type vibration motors be customized for specific applications?
LEADER offers customization options for coin vibration motors, including size, vibration intensity range, and connection interfaces, to meet the specific requirements of different products.
If you are looking to incorporate coin vibration motors into your next product design or are in charge of procurement for your company, our factory offers a wide range of high - quality coin vibration motors. Need coin vibration motors? Contact our factory today for a free quote and explore how our products can enhance the functionality and user experience of your devices.
