In recent years, people's pursuit of beauty is no longer limited to traditional cosmetics and skin care products. SPA device as a new product of modern beauty science and technology, its emergence just to meet the demand for differentiated care.
After the user applies the essence or lotion to the beauty device or face, the SPA device massages it with delicate vibrations, making it easier for the active ingredients in the essence to penetrate the skin barrier and speeding up the absorption of the nourishing ingredients into the skin, thus achieving the effect of making the skin firmer and more moisturized. At the same time this vibration massage can stimulate the capillaries under the skin and promote blood flow, thus improving blood circulation.
What We Produce
LEADER team independently developed the brushless motor based on the characteristics of the usage scenarios of beauty devices. This major category has the following advantages:
1.Long life: this brushless motor replaces the traditional brushed motor. The brushless motor is driven by internal IC, replacing the traditional brush and commutator. Its life span is more durable, and the running time can reach more than 400H, which improves the use cycle of the beauty device.
2. Low noise: Brushless motor removes the brushes and reduces the friction during operation, which greatly reduces the noise and creates a bass environment for users.

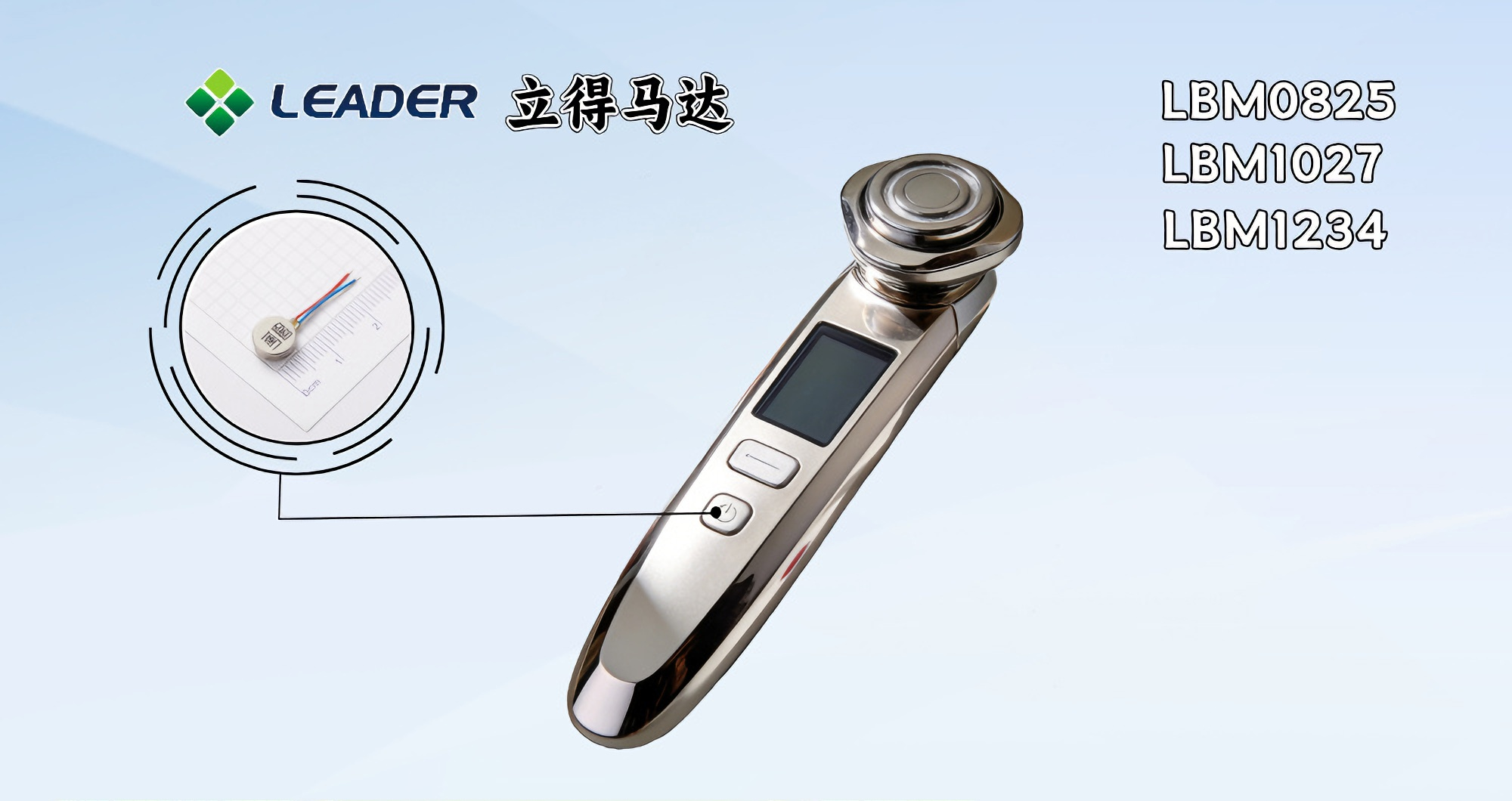

Based on a vast number of inquiries and user feedback, LEADER has provided three motor solutions, LBM0825, LBM1027, and LBM1234, according to the different demands of customers for massage (vibration) intensity, with vibration sensations ranging from gentle to strong. The specific parameters are as follows:
| Model | LBM0825 | LBM1027 | LBM1234 |
| Type | BLDC | BLDC | BLDC |
| Size (mm) | Φ8*T2.5 | Φ10*T2.7 | Φ12*T3.4 |
| Rotation Direction | CW | CW | CW |
| Vibration Force(G) | 1.0G Min（PEAK）；100g Jig | 2.0G Min（PEAK）；100g Jig | 2.50G Min（PEAK）；100g Jig |
| Operating Voltage Range (V) | 2.5-3.8v | 2.7-3.3v | 3.0-4.5v |
| Rated Voltage （V） | 3.0(DC) | 3.0(DC) | 3.7(DC) |
| Current (mA) | ≤80 | ≤80 | ≤80 |
| Rated Speed（RPM） | 13500±3500 RPM | 13500±3500 RPM | 11000±3000 RPM |
| Lifespan | 2s on/1s off; 416H | 2s on/1s off; 416H | 1s on/1s off; 1000H |
Get Micro Brushless Motors in Bulk Step-by-step
We help you avoid the pitfalls to deliver the quality and value your micro vibration motors need, on-time and on budget.
