Product Description

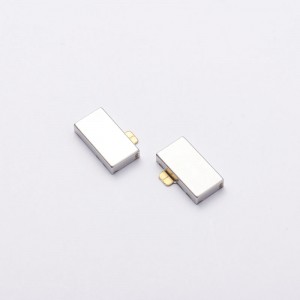

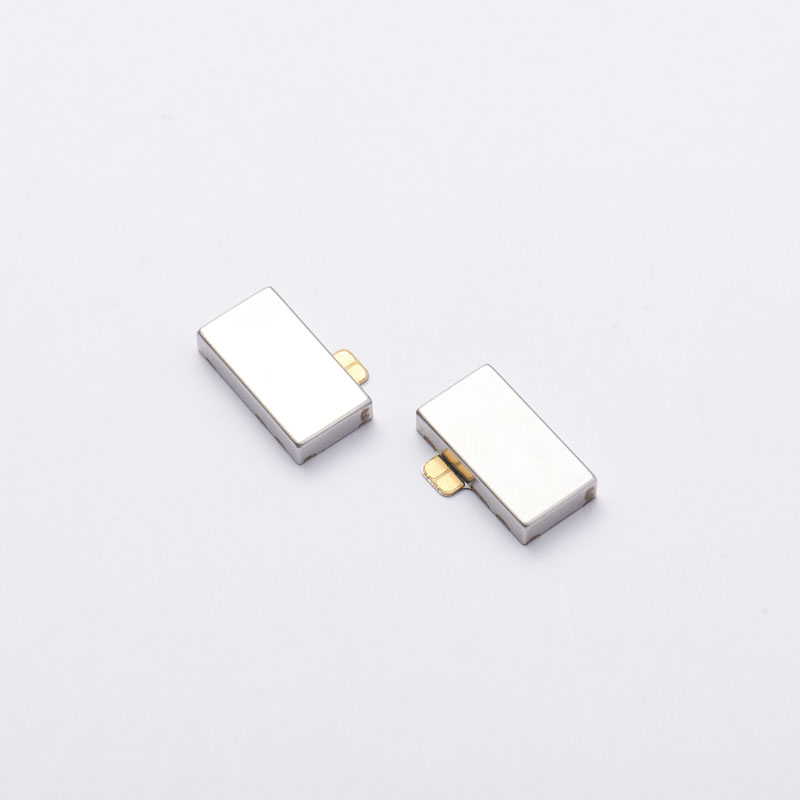

8*15mm Linear AC Motor | Mini Vibrating Motor | LEADER LD0815AA

Short Description:

Leader Micro Electronics currently produces linear vibration motors, also known as LRA (Linear Resonant Actuator) motors with diameters of φ4mm – φ8mm.

Linear motors are convenient to use and can be affixed in place with a solid permanent self-adhesive mounting system.

We offer both lead wire, FPCB, and spring mountable versions for linear motors. The wire length can be modified and the connector can be added as required.

Product Detail

Company profile

Product Tags

Main Features

- 1.8Vrms Ac Sine Wave

- Extremely Long Lifespan

- Adjustable Vibrating Force

- Fast Haptic Feedback

-Low Noise

Write your message here and send it to us
8x15mm Linear AC Motor


Size (mm): 8*15*3.0
Rated Voltage (VAc): 0.9
Operating Voltage (VAc): 0.1~0.95
Rated Current(mA): 130
Rated Frequency (Hz): 170
Resistance (Ω) 9.0±1.0
Life time (Cycle)  1,000,000

(1cycle:2sec on/1sec off )

Part Packaging: Plastic Tray
Qty per reel / tray: 100
Quantity - Master box: 4000

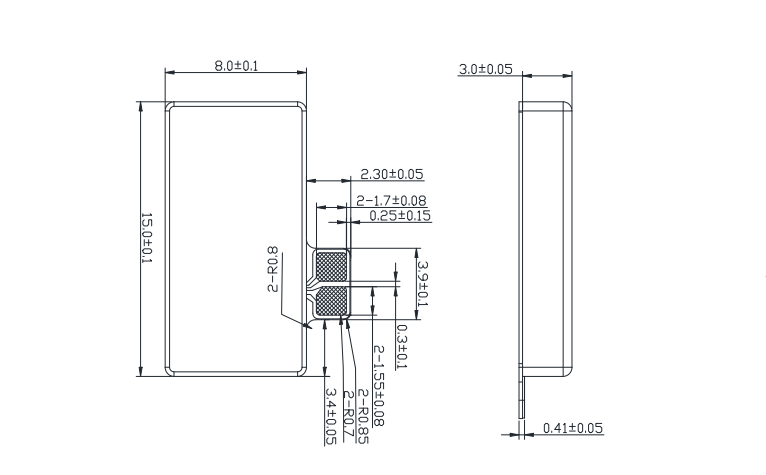

Linear AC Motor Engineering drawing


The linear motor has some remarkable advantages: extremely high lifetime, adjustable vibrating force, fast response and low noise. It is widely used on electronic products that require haptic feedbacks such as high-end phones and smartwatches, VR glasses, game controllers.

coin lra vibration motors Application

Working with Us

Send Inquiry & Designs

Please tell us what kind of motor you are interested in, and advise the size, voltage, and quantity.

Review Quote & Solution

We will provide a precise quote tailored to your unique needs within 24 hours.

Making Samples

Upon confirming all the details, we will start making a sample and have it ready in 2-3 days.

Mass Production

We handle the production process carefully, ensuring every aspect is expertly managed. We promise perfect quality and timely delivery.

FAQ For Linear Vibration Motor

What is the frequency range of LD0815 linear vibration motor?

Answer: The frequency range of LD4512 is 162Hz to 178Hz.

Can LD0815 linear vibration motor be used in a wet environment?

This linear vibration motor is not recommended for use in wet environments as it may compromise the motor's performance and longevity.

What is the maximum acceleration of LD0815 Ac linear vibration motor?

Answer: The maximum acceleration of this linear vibration motor depends on the specific model, but typically ranges between 0.9G to 1.1G.

  • Previous:
  • Next:

  • Quality Control

    We have 200% inspection before shipment and the company enforces quality management methods, SPC, 8D report for defective products. Our company has a strict quality control procedure, which mainly tests four contents as follow:

    Quality Control

    01. Performance Testing; 02. Waveform Testing; 03. Noise Testing; 04. Appearance Testing.

    Company Profile

    Established in 2007, Leader Micro Electronics (Huizhou) Co., Ltd. is a high-tech enterprise integrating R&D, production, and sales of micro vibration motors. Leader mainly manufactures coin motors, linear motors, brushless motors and cylindrical motors, covering an area of more than 20,000 square meters. And the annual capacity of micro motors is nearly 80 million. Since its founding, Leader has sold nearly a billion of vibration motors all over the world, which are widely used on about 100 kinds of products in different fields. The main applications conclude smartphones, wearable devices, electronic cigarettes and so on.

    Company Profile

    Reliability Test

    Leader Micro has professional laboratories with a full set of testing equipment. The main reliability testing machines are as below:

    Reliability Test

    01. Life Test; 02. Temperature & Humidity Test; 03. Vibration Test; 04. Roll Drop Test;05. Salt Spray Test; 06. Simulation Transport Test.

    Packaging & Shipping

    We support air freight, sea freight and express.The main express are DHL, FedEx, UPS, EMS, TNT etc. For the packaging: 100pcs motors in a plastic tray >> 10 plastic trays in a vacuum bag >> 10 vacuum bags in a carton.

    Besides, we can provide free samples on request.

    Packaging & Shipping
