When selecting a vibration motor for your project, choosing between a coin vibration motor and a cylinder vibration motor can be challenging. Both have their characteristics, and understanding their differences in structure, size, vibration effect, and applicable scenarios is key to making the right decision. Let's break it down.
1. Structure

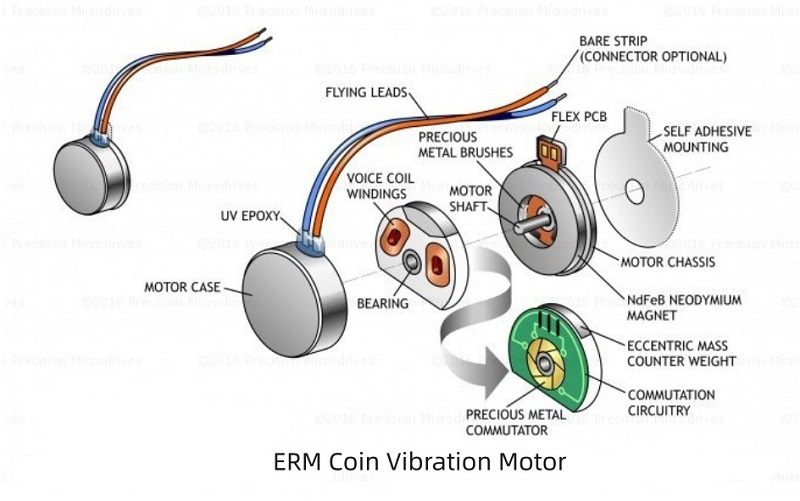

Coin Vibration Motor
- Design: As the name suggests, it has a flat, coin-shaped structure. The rotor is typically a small, eccentric mass positioned within a compact, disc-like housing. The overall design is simple and streamlined, with components tightly integrated to save space.
- Assembly: Its flat structure makes it easier to be surface-mounted or fit into thin-profile devices, as it doesn't have a long, extended shape.

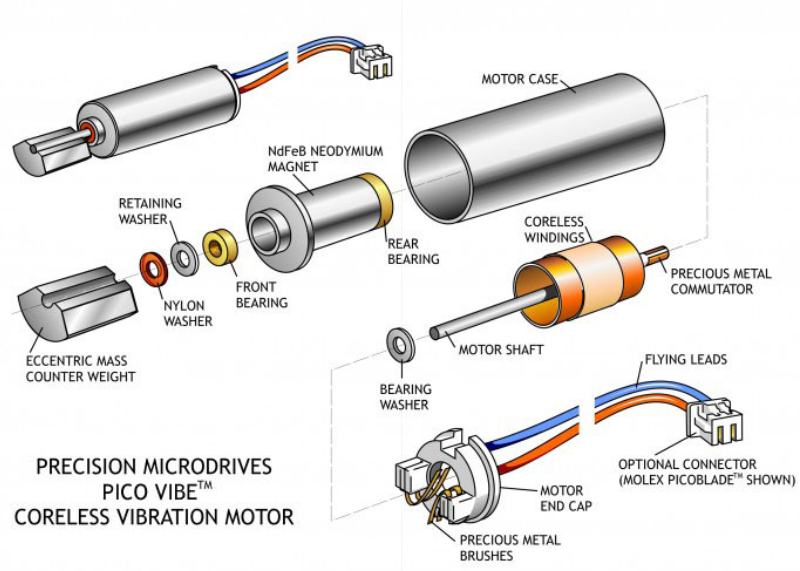

Cylinder Vibration Motor
- Design: Features a cylindrical shape, with the rotor and other components arranged along a central axis. It has a more elongated form, with the vibration-generating eccentric mass often positioned along the length of the cylinder.
- Assembly: Tends to take up more linear space, which can be a limitation in applications where vertical or lengthwise space is restricted.
2. Size

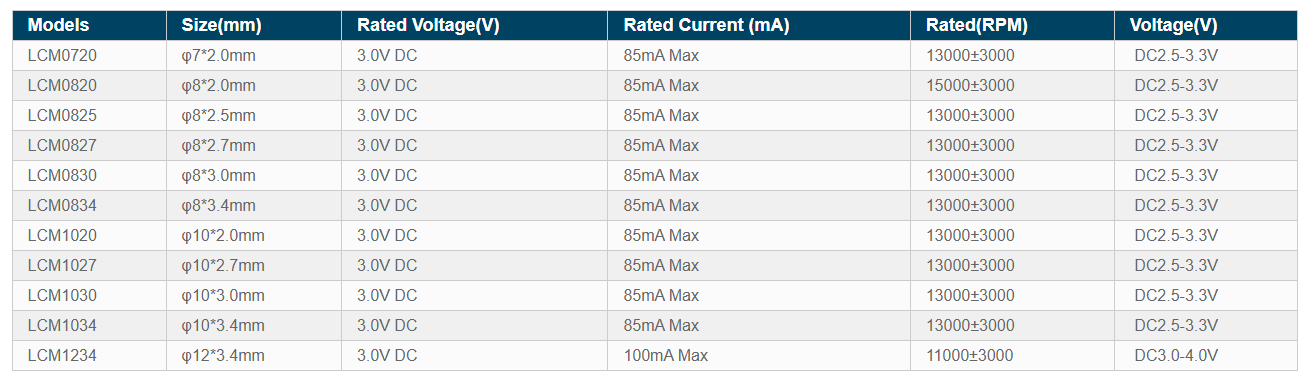

Coin Vibration Motor
- Compactness: These motors are known for their small form factor. They typically have a diameter ranging from a few millimeters to around 12mm, and a very thin thickness, usually just a couple of millimeters. This makes them perfect for applications where space is at a premium, like in smartwatches, thin-film keyboards, or small-sized wearables.
- Space Efficiency: Their flat design allows them to be placed in tight spaces, lying flush against circuit boards or other internal components without adding much bulk.

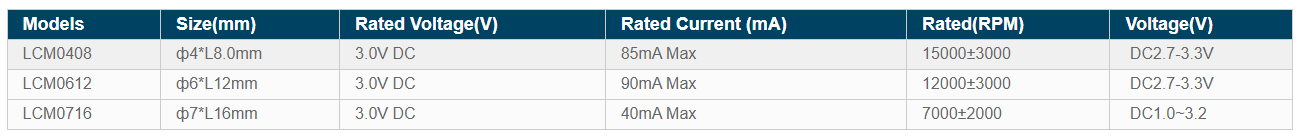

Cylinder Vibration Motor
- Dimensions: Cylinder vibration motors have a larger overall size in terms of length. While their diameter can be similar to that of coin motors in some cases, their length can range from several centimeters to longer, depending on the power and vibration requirements. For example, in some industrial equipment applications, longer cylinder motors are used to generate stronger vibrations.
- Space Consumption: Due to their elongated shape, they require more vertical or linear space with a device. This can be a drawback in compact consumer electronics but might be acceptable in larger machinery or equipment where space isn't as constrained.
3. Vibration Effect
Coin Vibration Motor
- Vibration Pattern: Produces a more localized and gentle vibration in many cases. The flat, disc-like structure means that the vibration is distributed more evenly across the surface it's mounted on. This is great for providing subtle haptic feedback, such as in mobile phones for notifications, where a light, precise vibration is desired.
- Intensity Range: Generally offers a lower to moderate vibration intensity. It's sufficient for consumer electronics and small-scale haptic applications but might not be powerful enough for heavy-duty industrial uses that need strong, far-reaching vibrations.
Cylinder Vibration Motor
- Vibration Pattern: Generates a more directional and potentially stronger vibration. The cylindrical shape and the way the eccentric mass rotates along the axis can create a more pronounced linear or rotational vibration. This is useful in applications like massage devices, where a deeper, more forceful vibration is needed to achieve the desired effect.
- Intensity Range: Can provide higher vibration intensities, making them suitable for industrial applications, like in automated machinery for part feeding or in some medical devices that require stronger tactile stimulation.
4. Applicable Scenarios
Coin Vibration Motor
- Consumer Electronics: Smartwatches, smartphones, tablets, and wireless earbuds often use coin vibration motors for discreet notifications, touch feedback in virtual keyboards, or to indicate incoming calls. Their small size fits perfectly into these slim devices.
- Wearable Tech: Fitness trackers, smart glasses, and other wearables rely on coin motors to provide unobtrusive haptic alerts, such as reminding users of step goals or new messages, without adding extra bulk to the device.
- Small Medical Devices: In some portable medical equipment, like blood glucose monitors or small-scale diagnostic tools, coin motors can offer gentle feedback to users, like confirming a button press or a completed test cycle.
Cylinder Vibration Motor
- Industrial Equipment: Used in machinery for tasks like vibrating screens to separate materials, or in automated feeding systems where parts need to be moved or sorted through vibration. Their higher vibration intensity can handle these heavy-duty operations.
-Massage and Wellness Devices: Massage guns, vibration therapy devices, and some personal massagers use cylinder motors to deliver strong, therapeutic vibrations that can reach deep into muscles.
-Automotive Industry (Certain Applications): In some car components like seat vibrators for warning systems (e.g., lane departure warnings) or in-car massage seats, cylinder motors can provide the necessary stronger vibration levels.
Customization Support
No matter which type of vibration motor you might initially lean towards, we offer two key customizations to ensure the motor fits your project.
- Custom Specifications: Whether you need a specific voltage, current, vibration intensity, or size adjustment for either the coin or cylinder vibration motor, our engineering team can work with you to develop a motor that meets your exact requirements.
- Custom Integration: We can customize the mounting options, connection types (such as different wire lengths or connector styles), and even the external casing design to seamlessly integrate the motor into your product, whether it's a tiny wearable or a large industrial machine.
If you're looking for a vibration motor that excels in compactness, subtle haptic feedback, and fitting into slim devices, the coin vibration motor is likely your best bet. Head over to our Coin Vibration Motor Product to explore our range of high-quality, customizable coin vibration motors and find the perfect match for your project.
In conclusion, understanding the differences in structure, size, vibration effect, and application scenarios between coin and cylinder vibration motors empowers you to make an informed choice. And with LEADER‘s customization options, you can be sure to get a motor tailored to your needs, whether it's the space-saving coin type or the more powerful cylinder type.
